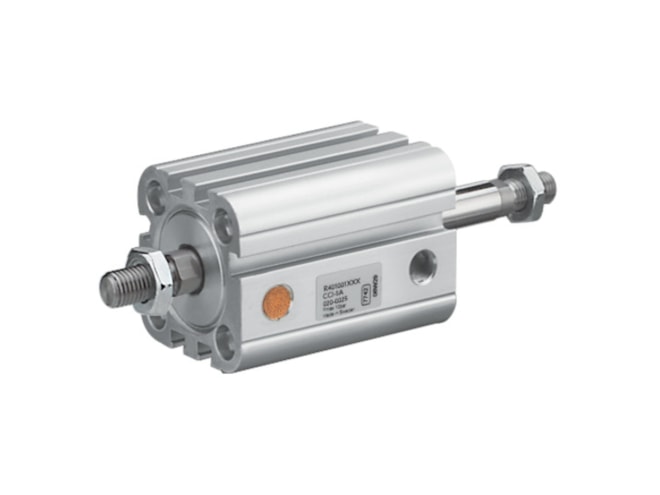

Aventics CCI-SA-016-0015-002123411000000000000012 Pneumatic Linear Actuator

Standard cylinders, ISO 21287, Compact cylinder, Piston rod cylinders, ISO cylinder, multi-position cylinder. View other configurations.

Aventics CCI-SA-016-0015-002123411000000000000012 Pneumatic Linear Actuator — Aventics-CCI-SA-016-0015-002123411000000000000012

Call for pricing

Part Numbers

CCI-SA-016-0015-002123411000000000000012
R422001662

Highlights...

CCI-SA-016-0015-002123411000000000000012
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Bore Size: 16 mm
Compressed air connection: M5
Cushioning: Elastic cushioning
Cylinder Function: Single-acting, retracted without pressure
Environmental requirements: Industry standard
Industry: Industrial
Magnetic piston: Piston with magnet
Max Working Pressure: 10 bar
Piston force extending: 83 N
Piston force retracting: 12 N
Piston rod modification: through
Piston rod thread: M6x1
Piston rod thread type: External thread
Scraper Type: Standard Industry Scraper
Stroke Length: 15 mm

View other configurations.

AVENTICS Compact cylinder ISO 21287, Series CCI R422001662
