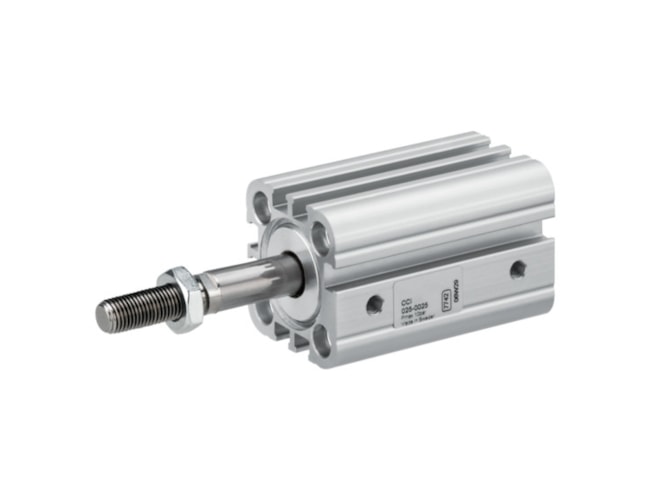

Aventics CCI-SA-080-0010-0031224110000000000028-B Pneumatic Linear Actuator

multi-position cylinder, ISO cylinder, Compact cylinder, Standard cylinders, Piston rod cylinders, ISO 21287. View other configurations.

Aventics CCI-SA-080-0010-0031224110000000000028-B Pneumatic Linear Actuator — Aventics-CCI-SA-080-0010-0031224110000000000028-B

Call for pricing

Part Numbers

CCI-SA-080-0010-0031224110000000000028-B
R422001559

Highlights...

CCI-SA-080-0010-0031224110000000000028-B
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Bore Size: 80 mm
Compressed air connection: G 1/8
Cushioning: Elastic cushioning
Cylinder Function: Single-acting, extended without pressure
Environmental requirements: Industry standard
Industry: Industrial
Magnetic piston: Piston with magnet
Max Working Pressure: 10 bar
Piston force extending: 105 N
Piston force retracting: 3167 N
Piston rod modification: single
Piston rod thread: M16x1,5
Piston rod thread type: External thread
Scraper Type: Standard Industry Scraper
Stroke Length: 10 mm

View other configurations.

AVENTICS Compact cylinder ISO 21287, Series CCI R422001559

Spec Sheets
