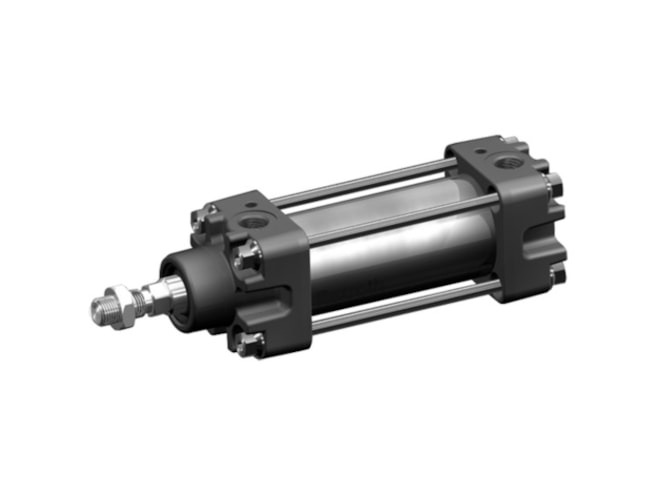

Aventics 167-DA-080-0250-DM00-0000SCW0000-0000S0S Pneumatic Linear Actuator

Piston rod cylinders, Tie rod cylinder. View other configurations.

Aventics 167-DA-080-0250-DM00-0000SCW0000-0000S0S Pneumatic Linear Actuator — Aventics-167-DA-080-0250-DM00-0000SCW0000-0000S0S

$639.43

Part Numbers

167-DA-080-0250-DM00-0000SCW0000-0000S0S
1670825000

Highlights...

167-DA-080-0250-DM00-0000SCW0000-0000S0S
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Bore Size: 80 mm
Compressed air connection: G 3/8
Cushioning: Pneumatic adjustable cushioning
Cylinder Function: Double-acting
Environmental requirements: Industry standard
Industry: Industrial
Magnetic piston: Piston with magnet
Max Working Pressure: 10 bar
Piston force extending: 3000 N
Piston force retracting: 2720 N
Piston rod modification: single
Piston rod thread: M20x1,5
Piston rod thread type: External thread
Scraper Type: Standard Industry Scraper
Stroke Length: 250 mm
Dimension: 18.50x3.94x3.94 (inches)

View other configurations.

AVENTICS Tie rod cylinder ISO 6431, Series 167 1670825000
