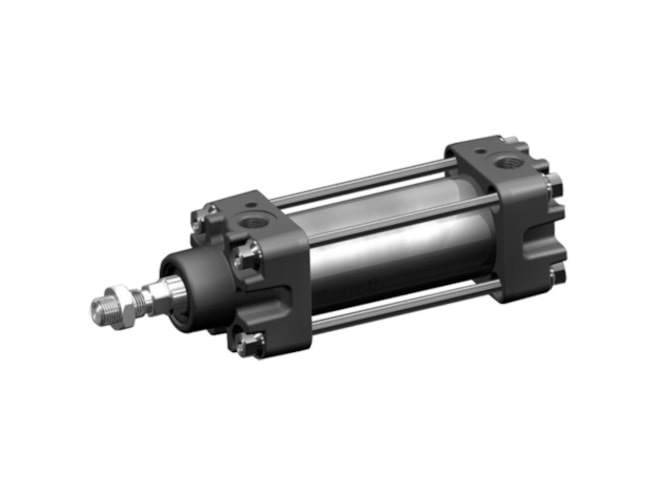

Aventics 167-DA-032-0160-DM00SCWS0S Pneumatic Linear Actuator

Piston rod cylinders, Tie rod cylinder. View other configurations.

Aventics 167-DA-032-0160-DM00SCWS0S Pneumatic Linear Actuator — Aventics-167-DA-032-0160-DM00SCWS0S

Call for pricing

Part Numbers

167-DA-032-0160-DM00SCWS0S
1670316000

Highlights...

167-DA-032-0160-DM00SCWS0S
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Bore Size: 32 mm
Compressed air connection: G 1/8
Cushioning: Pneumatic adjustable cushioning
Cylinder Function: Double-acting
Environmental requirements: Industry standard
Industry: Industrial
Magnetic piston: Piston with magnet
Max Working Pressure: 10 bar
Piston force extending: 480 N
Piston force retracting: 420 N
Piston rod modification: single
Piston rod thread: M10x1,25
Piston rod thread type: External thread
Scraper Type: Standard Industry Scraper
Stroke Length: 160 mm
Dimension: 11.85x1.89x1.97 (inches)

View other configurations.

AVENTICS Tie rod cylinder ISO 6431, Series 167 1670316000
