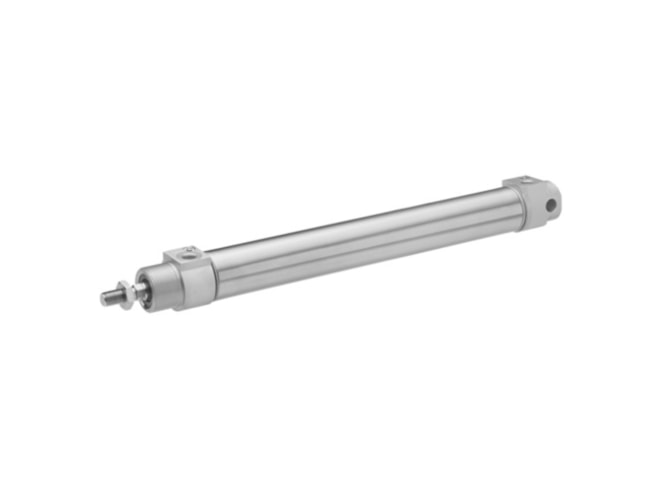

Aventics RPC-DA-050-0080-13-1-2-BAS Pneumatic Linear Actuator

Piston rod cylinders, Round cylinder. View other configurations.

Aventics RPC-DA-050-0080-13-1-2-BAS Pneumatic Linear Actuator — Aventics-RPC-DA-050-0080-13-1-2-BAS

$203.14

Part Numbers

RPC-DA-050-0080-13-1-2-BAS
R412020752

Highlights...

RPC-DA-050-0080-13-1-2-BAS
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Bore Size: 50 mm
Compressed air connection: G 1/4
Cushioning: Pneumatic adjustable cushioning
Cylinder Function: Double-acting
Environmental requirements: Industry standard, ATEX optional
Industry: Industrial
Magnetic piston: Piston with magnet
Max Working Pressure: 10 bar
Piston force extending: 1235 N
Piston force retracting: 1035 N
Piston rod modification: single
Piston rod thread: M16x1,5
Piston rod thread type: External thread
Scraper Type: Standard Industry Scraper
Stroke Length: 80 mm
Dimension: 10.63x2.36x2.36 (inches)

View other configurations.

AVENTICS Round cylinder, Series RPC R412020752
