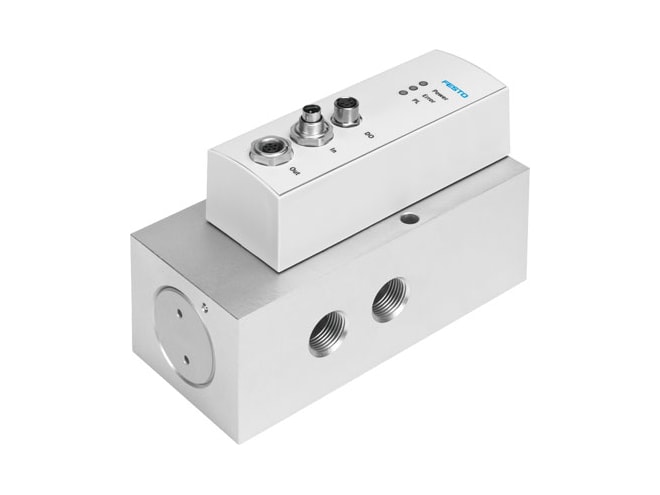

Festo VPWP-10-L-5-Q-10-E-G-EX1 Proportional Directional Control Valve

Name: Festo VPWP-10-L-5-Q-10-E-G-EX1 Proportional Directional Control Valve
Price: 1855.04 USD
Availability: InStock

5/3 proportional directional control valve, closed. Integrated pressure sensors.

$1,855.04

Part Numbers

VPWP-10-L-5-Q-10-E-G-EX1
1552544

Highlights...

VPWP-10-L-5-Q-10-E-G-EX1
By Festo
FREE Shipping
Manufacturer has 4 in stock.
Ships in 3-4 business days. Call for expedite options.

Features

Compressed air to ISO 8573-1:2010 [6:4:4]
5/3-way proportional directional control valve, closed
- Piston gate valve, integrated pressure sensors
Digital actuation
Non-reversible flow direction
1.5% linearity error in ± %FS
1% repetition accuracy FS
Nominal size: 10mm
LED: power load, power, and error status displays
Operating pressure: 0 to 1MPa (0 to 10bar)
- 4 to 8bar for positioning/soft stop
Nominal flow rate: 2000 l/min
Media/ambient temperature: 0 to 50°C
Digital output design: to IEC 61131-2, PNP
Control interface: digital, CAN bus with Festo protocol
- integrated terminating resistor
Pneumatic connections: G3/8
Hazardous area approvals: Ex nA IIC T5 X Gc, II 3G ATEX

The Festo VPWP-10-L-5-Q-10-E-G-EX1 Proportional Directional Control Valve is a digitally actuated piston spool valve, with integrated pressure sensors to optimize function and force controls. The CAN bus interface allows for easy and efficient data transmission. Each unit comes with a digital output for compatibility with a clamping or brake unit. In servo-pneumatic applications, the VPWP Series is nearly always combined with a controller CMAX (see Accessories tab). Contact a Pump World engineer to inquire on additional configurations.
