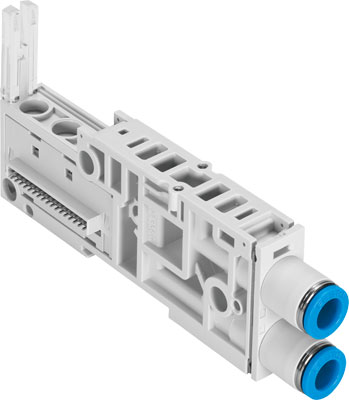

Festo 560989 / VMPAL-AP-14-QS8-1 Sub-base

Features

• 14.9MM width
• 107.3MM length
• 14.9MM grid dimension
• 14MM valve size
• 1 max. number of valve positions
• Reversible flow direction
• Valve sizes can be mixed valve terminal structure
• 1 max. number of valve coils
• -0.09MPA operating pressure
• 1MPA operating pressure
• -0.9BAR operating pressure
• 10BAR operating pressure
• 0.3MPA pilot pressure
• 0.8MPA pilot pressure
• 3BAR pilot pressure
• 8BAR pilot pressure
• Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
• Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
• 3 - high corrosion stress corrosion resistance class cRC
• VDMA24364-B1/B2-L lABS (PWIS) conformity
• 59.25G product weight
• RoHS-compliant note on materials
• PA-reinforced material sub-base
• -5GC ambient temperature to 50GC ambient temperature
• Pneumatic connection for tubing outside diameter of 8 mm , port 2
• Pneumatic connection for tubing O.D. 8 mm , port 4
