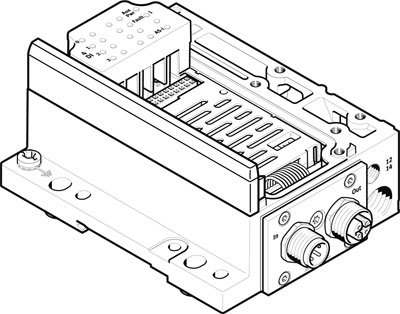

Festo 546989 / VMPA-ASI-EPL-G-4E4A-Z Electrical Interface

$428.79
Part Numbers
  • VMPA-ASI-EPL-G-4E4A-Z
  • 546989
Highlights...

Features

  • 85 x 122.9 x 55.1 mm dimensions (W x l x h)
  • Socket, M12 (ASI Out) field bus interface
  • Plug connector, M12 (ASI In) field bus interface
  • AS-i voltage device-specific diagnostics
  • AS-Interface address device-specific diagnostics
  • Watchdog/I/O status device-specific diagnostics
  • Additional power supply not applied or undervoltage device-specific diagnostics
  • 4 max. number of valve positions
  • Typ. 3 ms at 24 V message delay inputs
  • 1 number of slaves per device
  • US+/US- : <= AS-Interface bus voltage - 2.5 V operating voltage range dC electronics/sensors
  • 26.5V operating voltage dC aS-interface
  • 31.6V operating voltage dC aS-interface
  • 21.6V operating voltage dC load voltage
  • 26.4V operating voltage dC load voltage
  • Via load voltage connection (24 V DC) note on load voltage
  • ON: 11 - 30 V logic level digital inputs
  • AUS: -30 - 5 V logic level digital inputs
  • 4 max. number of inputs
  • <= 20 mVpp residual ripple, aS interface
  • 4 Vpp residual ripple, load voltage
  • Max. resultant current for inputs 350 mA current consumption with load supply from aS-interface connection and load voltage connection
  • Max. resultant current for outputs MPA12: 270 mA current consumption with load supply from aS-interface connection and load voltage connection
  • Max. resultant current for outputs MPA2: 533 mA current consumption with load supply from aS-interface connection and load voltage connection
  • 1 - Low corrosion stress corrosion resistance class cRC
  • VDMA24364-B1/B2-L lABS (PWIS) conformity
  • IP20 degree of protection
  • 360G product weight
  • To IEC 1131-2, type 02 characteristic for inputs
  • PNP (positive switching) switching logic for inputs
  • 1 ... 31 addressing range
  • AS-i: AS-Interface mode lED display, bus-specific
  • Aux/Pwr: AS-Interface power supply lED display, bus-specific
  • Fault: AS-Interface fault lED display, bus-specific
  • Signal at input/output lED display, product-specific
  • ID code: ID=Fh, ID1=Fh, ID2=Eh product identification
  • IO code: 7h product identification
  • Profile: S-7.F.E product identification
  • Either: type of mounting
  • With through-hole type of mounting
  • With H-rail type of mounting
  • Die-cast aluminium material housing
  • PA material housing
  • RoHS-compliant note on materials
  • -5GC ambient temperature to 50GC ambient temperature
  • -20GC to 40GC storage temperature
