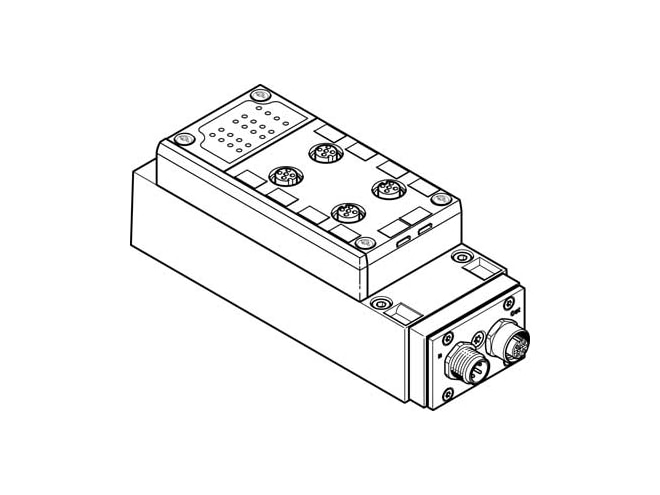

Festo VAEM-S6-S-FAS-4-4E AS-i Module

Features

• Socket, M12x1, 4-pin field bus interface
• Plug connector, M12x1, 4-pin field bus interface
• Short circuit/overload of inputs device-specific diagnostics
• Undervoltage device-specific diagnostics
• Via peripherals error: device-specific diagnostics
• Optional mounting position
• 2 with bistable valves max. number of valve positions
• 4 with monostable valves max. number of valve positions
• 4 max. number of valve coils
• For all electrical operating voltage connections reverse polarity protection
• DIL switch operator controls
• 1 number of slaves per device
• 26.5V operating voltage dC aS-interface
• 31.6V operating voltage dC aS-interface
• Via load voltage connection (24 V DC) note on load voltage
• 21.6V load voltage range dC
• 26.4V load voltage range dC
• 4 max. number of outputs
• 4 max. number of inputs
• 26.5V nominal dC operating voltage, aS-interface
• 24V nominal load voltage dC
• 24V nominal operating voltage dC
• <= 20 mVpp residual ripple, aS interface
• 4 Vpp residual ripple, load voltage
• Signal 0: <= 5 V switching level
• Signal 1: >= 11 V switching level
• +/- 10 % permissible voltage fluctuations
• To EU EMC Directive cE mark (see declaration of conformity)
• To EU Low Voltage Directive cE mark (see declaration of conformity)
• 0 - No corrosion stress corrosion resistance class cRC
• VDMA24364-B1/B2-L lABS (PWIS) conformity
• 0 - 90% relative air humidity
• IP65 degree of protection
• In assembled state degree of protection
• 300G product weight
• Fieldbus electrical control
• PNP (positive switching) switching logic for inputs
• Via CPX electrical connection
• 1 ... 31 (0) addressing range
• Set using AS-Interface addressing device addressing range
• Optocoupler electrical isolation fieldbus interface
• AS-i: AS-Interface mode lED display, bus-specific
• Aux/Pwr: AS-Interface power supply lED display, bus-specific
• Fault: AS-Interface fault lED display, bus-specific
• 0 ... 7: Switching status of inputs lED display, product-specific
• 12/14: switching status of valves (on valve) lED display, product-specific
• ID1=Fh product identification
• ID2=Eh product identification
• IO code: 7h product identification
• Profile: S-7.A.7 product identification
• NBR material seals
• PUR material seals
• PA material housing
• RoHS-compliant note on materials
• -5GC ambient temperature to 50GC ambient temperature
• -20GC to 60GC storage temperature
