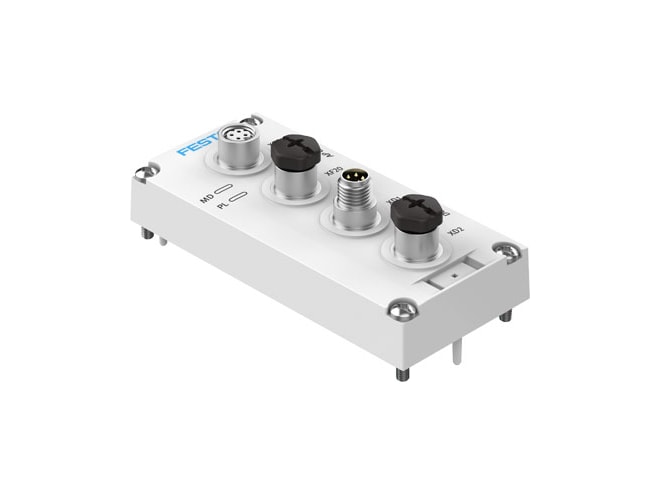

Festo VAEM-L1-S-12-AP Electrical Interface

Features

• 42 x 91 x 30 mm dimensions (W x l x h)
• Top position of connection
• Diagnostics per module diagnostics via lED
• Load power supply diagnostics via lED
• Load switch-off diagnostics per internal communication
• Electronics/sensors overvoltage diagnostics per internal communication
• Load overvoltage diagnostics per internal communication
• Electronics/sensors undervoltage diagnostics per internal communication
• Load undervoltage diagnostics per internal communication
• 12 max. number of valve positions
• 24 max. number of valve coils
• Yes reverse polarity protection
• Configuration of voltage monitoring load supply PL module parameters
• Response in error state module parameters
• Internal electronic fuse per channel fuse protection (short circuit)
• Typically 34 mA intrinsic current consumption at nominal operating voltage for electronics/sensors
• Typically 16 mA intrinsic current consumption at nominal operating voltage load
• 24V nominal dC operating voltage, electronics/sensors
• 24V nominal operating voltage dC of load
• 10MS power failure bridging
• 3MS power failure buffering of load
• ± 25% permissible voltage fluctuations for electronics/sensors
• ± 10% permissible voltage fluctuation of load
• 2 x 4 A (external fuse required) max. power supply
• Incoming electronics/sensors and load power supply, function
• Plugs power supply, connection type
• M8x1, A-coded to EN 61076-2-104 power supply, connection system
• 4 power supply, number of pins/wires
• Outgoing electronics/sensors and load power transmission, function
• Socket power transmission, connection type
• M8x1, A-coded to EN 61076-2-104 power transmission, connection technology
• 4 power transmission, number of pins/wires
• 2x socket communication interface, connection type
• M8x1, D-coded according to EN 61076-2-114 communication interface, connection technology
• 4 communication interface, number of pins/wires
• System communication XF10 IN / XF20 OUT communication interface, function
• AP-COM communication interface, protocol
• Yes communication interface, shielding
• To EU EMC Directive cE mark (see declaration of conformity)
• To UK instructions for EMC cE marking (see declaration of conformity)
• KC-EMV kC mark
• 50 m system communication max. cable length
• 2 - Moderate corrosion stress corrosion resistance class cRC
• VDMA24364-B1/B2-L lABS (PWIS) conformity
• 5 - 95% relative air humidity
• Non-condensing relative air humidity
• PELV protection against direct and indirect contact
• SELV protection against direct and indirect contact
• SELV/PELV fixed power supplies required note regarding operating voltage
• Note voltage drop note regarding operating voltage
• IP65 degree of protection
• IP67 degree of protection
• In assembled state note on degree of protection
• Unused connections sealed note on degree of protection
• RCM trademark approval
• C UL us - Recognized (OL) approval
• <= 2000 m NHN nominal altitude of use
• 76G product weight
• Screw-clamped type of mounting
• PA-reinforced material housing
• Nickel-plated brass material threaded sleeve
• RoHS-compliant note on materials
• -5GC ambient temperature to 60GC ambient temperature
• -20GC to 60GC storage temperature
