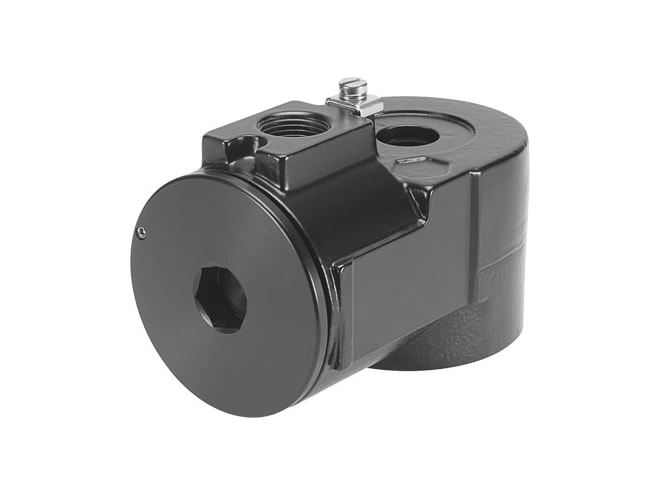

Festo VACC-S18-70-K4-7U-EX4D Solenoid Coil

Features

• Electric type of actuation
• Optional mounting position
• No switching position indicator
• 100% duty cycle
• H insulation material class
• 48 V AC: 50/60 Hz, power 7.0 VA characteristic coil data
• 48 V DC: 7.0 W characteristic coil data
• -15%/+10% permissible voltage fluctuations
• To EU Explosion Protection Directive (ATEX) cE mark (see declaration of conformity)
• In accordance with EU RoHS Directive cE mark (see declaration of conformity)
• To UK EX instructions cE marking (see declaration of conformity)
• To UK RoHS instructions cE marking (see declaration of conformity)
• EPL Db (GB) explosion protection certification outside the eU
• EPL Db (IEC-EX) explosion protection certification outside the eU
• EPL Gb (GB) explosion protection certification outside the eU
• EPL Gb (IECEx) explosion protection certification outside the eU
• BVS15ATEXE135 certificate issuing authority
• IECExBVS.15.0116 certificate issuing authority
• II 2G aTEX category gas
• II 2D aTEX category dust
• Ex db IIC T6, T5, T4 Gb explosion ignition protection type for gas
• Ex tb IIIC T80°C,95°C,130°C Db explosion ignition protection type for dust
• T4,T130°C: -50°C <= Ta <= +90°C explosion ambient temperature
• T5,T95°C: -50°C <= Ta <= +55°C explosion ambient temperature
• T6,T80°C: -50°C <= Ta <= +40°C explosion ambient temperature
• 4 - Very high corrosion stress corrosion resistance class cRC
• VDMA24364 zone III lABS (PWIS) conformity
• IP65 degree of protection
• 1700G product weight
• Terminal box, cable entry thread M20x1.5 electrical connection
• RoHS-compliant note on materials
• Wrought aluminium alloy material solenoid coil
• Grey cast iron material solenoid coil
