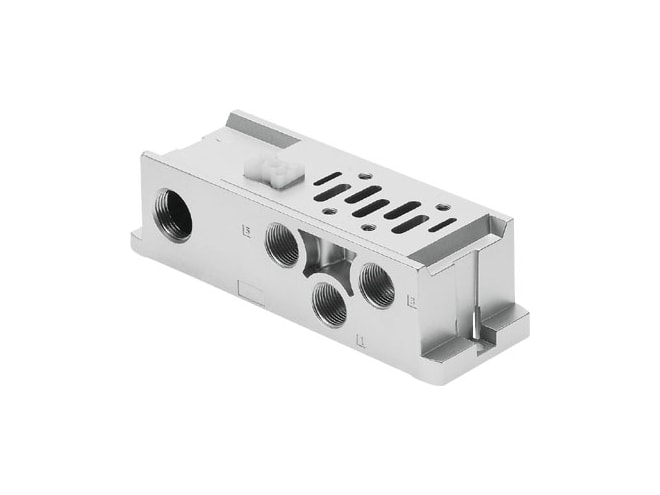

Festo VABS-S2-1S-G38-K1 Sub-base

Features

• 42MM construction width
• ISO 5599-2 based on standard
• Optional mounting position
• External pilot air supply
• -0.09MPA operating pressure
• 1MPA operating pressure
• -0.9BAR operating pressure
• 10BAR operating pressure
• 110V operational voltage range aC
• 24V operational voltage range dC
• 4KV immunity to surge
• 2A current rating at 40° c
• 3 pollution degree
• To EU Low Voltage Directive cE mark (see declaration of conformity)
• Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
• Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
• 0 - No corrosion stress corrosion resistance class cRC
• VDMA24364-B1/B2-L lABS (PWIS) conformity
• IP65 degree of protection
• NEMA 4 degree of protection
• In assembled state degree of protection
• 364G product weight
• With through-hole type of mounting
• RoHS-compliant note on materials
• Die-cast aluminium material sub-base
• -5GC ambient temperature to 50GC ambient temperature
