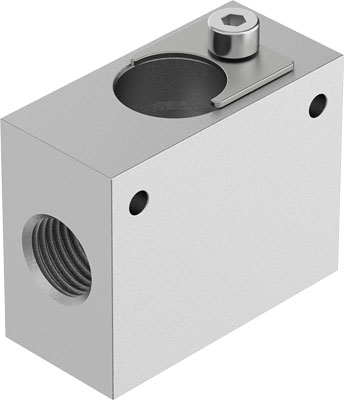

Festo 8087327 / VABS-P4-10S-G14 Manifold Block

$48.24
Part Numbers
  • VABS-P4-10S-G14
  • 8087327
Highlights...

Features

  • 21MM construction width
  • Optional mounting position
  • Oxygen-compatible to DIN EN 1797 special characteristics
  • Connection direction at side design
  • 1 max. number of valve positions
  • Inert gases operating medium
  • Air operating medium
  • Oxygen operating medium
  • Lubricated operation not possible note on operating and pilot medium
  • Maximum particle size 10 µm note on operating and pilot medium
  • 2 - Moderate corrosion stress corrosion resistance class cRC
  • VDMA24364 zone III lABS (PWIS) conformity
  • 5GC media temperature
  • 50GC media temperature
  • 70G product weight
  • With through-hole type of mounting
  • RoHS-compliant note on materials
  • Anodised wrought aluminium alloy material sub-base
  • 0BAR to 8BAR operating pressure
  • 5GC ambient temperature to 50GC ambient temperature
  • -40GC to 80GC storage temperature
  • Pneumatic connection g1/4 , port 1
  • Pneumatic connection g1/4 , port 2
