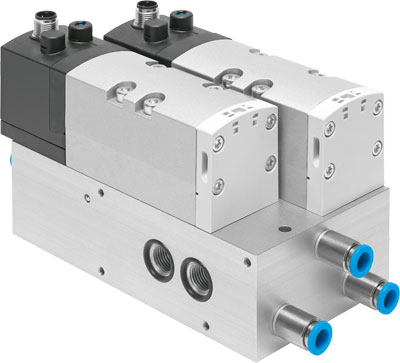

Festo 2614863 / VABP-S1-1V1G-G14-2M-R3 Sub-base

$1,008.83
Part Numbers
  • VABP-S1-1V1G-G14-2M-R3
  • 2614863
Highlights...

Features

  • 42MM construction width
  • G1/8 function port 32
  • G1/8 function port 34
  • Sub-base pneumatic port 22
  • G1/4 pneumatic port 22
  • Sub-base pneumatic port 44
  • G1/4 pneumatic port 44
  • Optional mounting position
  • 3BAR pilot pressure
  • 8BAR pilot pressure
  • 1400L2 standard nominal flow rate
  • Compressed air to ISO 8573-1:2010 [6:4:4] operating medium
  • 0 - No corrosion stress corrosion resistance class cRC
  • VDMA24364-B1/B2-L lABS (PWIS) conformity
  • 0GC media temperature
  • 50GC media temperature
  • 2480G product weight
  • G1/8 pilot air port 14
  • RoHS-compliant note on materials
  • Wrought aluminium alloy material manifold rail
  • NBR material o-ring
  • Steel material screws
  • 0BAR to 16BAR operating pressure
  • 0GC ambient temperature to 50GC ambient temperature
  • Pneumatic connection g1/4 , port 2
  • Pneumatic connection g1/4 , port 4
