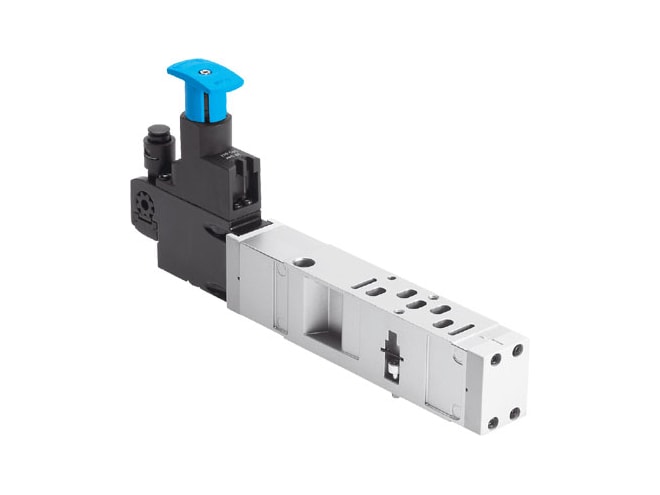

Festo VABF-S4-1-R7C2-C-6 Regulator Plate

Features

• 26MM construction width
• ISO 15407-2 based on standard
• Optional mounting position
• Output pressure constant controller function
• With secondary venting controller function
• 991945 symbol
• Possible selection of pressure gauge
• 0.05MPA pressure regulation range
• 0.6MPA pressure regulation range
• 0.5BAR pressure regulation range
• 6BAR pressure regulation range
• 7.25PSI pressure regulation range
• 87PSI pressure regulation range
• To EU Low Voltage Directive cE mark (see declaration of conformity)
• To UK regulations for electrical equipment cE marking (see declaration of conformity)
• Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
• Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
• 0 - No corrosion stress corrosion resistance class cRC
• VDMA24364-B1/B2-L lABS (PWIS) conformity
• IP65 degree of protection
• NEMA 4 degree of protection
• Compressed air to ISO 8573-1:2010 [7:4:4] pilot medium
• 448G product weight
• Via retaining clamp pressure gauge connection
• PA material control panel
• Die-cast aluminium material regulator housing
• 0.6MPA to 6BAR operating pressure
• 0.5BAR to 10BAR inlet pressure 1
• -5GC ambient temperature to 50GC ambient temperature
