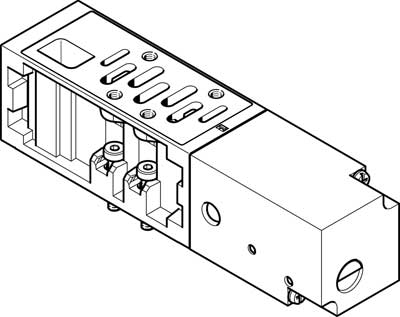

Festo 555790 / VABF-S1-2-L1D1-C Vertical Pressure Shut-off Plate

Features

• 54MM construction width
• ISO 5599-1 based on standard
• Optional mounting position
• Alternative compressed air supply for 1 vertical pneumatic linkage
• 991890 symbol
• -0.09MPA operating pressure
• 1MPA operating pressure
• -0.9BAR operating pressure
• 10BAR operating pressure
• 0.5BAR inlet pressure 1
• 10BAR inlet pressure 1
• 0.05MPA inlet pressure 1
• 1MPA inlet pressure 1
• 7.25PSI inlet pressure 1
• 145PSI inlet pressure 1
• 1950L2 standard nominal flow rate
• Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
• Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
• 0 - No corrosion stress corrosion resistance class cRC
• VDMA24364-B1/B2-L lABS (PWIS) conformity
• IP65 degree of protection
• NEMA 4 degree of protection
• 1030G product weight
• On manifold sub-base mounting with vertical stacking
• On individual sub-base mounting with vertical stacking
• RoHS-compliant note on materials
• Die-cast aluminium material housing
• -5GC ambient temperature to 50GC ambient temperature
