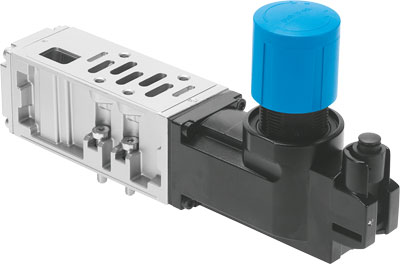

Festo 546822 / VABF-S1-1-R2C2-C-10 Regulator Plate

Features

• 42MM construction width
• ISO 5599-1 based on standard
• Optional mounting position
• Pressure regulator for 2 vertical pneumatic linkage
• Output pressure constant controller function
• With secondary venting controller function
• 991581 symbol
• Possible selection of pressure gauge
• 0.1MPA pressure regulation range
• 1MPA pressure regulation range
• 1BAR pressure regulation range
• 10BAR pressure regulation range
• 14.5PSI pressure regulation range
• 145PSI pressure regulation range
• 0.5BAR inlet pressure 1
• 10BAR inlet pressure 1
• 0.05MPA inlet pressure 1
• 1MPA inlet pressure 1
• 7.25PSI inlet pressure 1
• 145PSI inlet pressure 1
• Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
• Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
• 0 - No corrosion stress corrosion resistance class cRC
• VDMA24364-B1/B2-L lABS (PWIS) conformity
• IP65 degree of protection
• NEMA 4 degree of protection
• 640G product weight
• On manifold sub-base mounting with vertical stacking
• On individual sub-base mounting with vertical stacking
• Via retaining clamp pressure gauge connection
• RoHS-compliant note on materials
• PA material control panel
• Die-cast aluminium material regulator housing
• -5GC ambient temperature to 50GC ambient temperature
