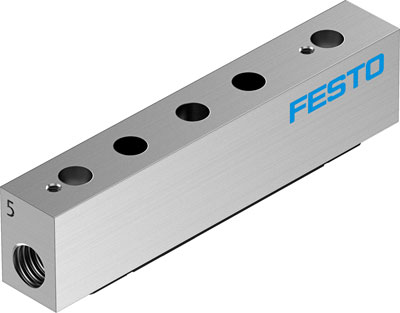

Festo 574594 / VABF-L1-P7A13-M7 Vertical Pressure Exhaust Plate

$29.13
Part Numbers
  • VABF-L1-P7A13-M7
  • 574594
Highlights...

Features

  • 10.5MM grid dimension
  • 1 max. number of valve positions
  • 995307 symbol
  • -0.09MPA operating pressure
  • 1MPA operating pressure
  • -0.9BAR operating pressure
  • 10BAR operating pressure
  • RCM trademark approval
  • C UL us - Recognized (OL) approval
  • 2 - Moderate corrosion stress corrosion resistance class cRC
  • VDMA24364-B1/B2-L lABS (PWIS) conformity
  • 0.45NM max. tightening torque for valve mounting
  • 220G product weight
  • RoHS-compliant note on materials
  • Wrought aluminium alloy material plate
  • Pneumatic connection m7 , port 3
  • Pneumatic connection m7 , port 5
