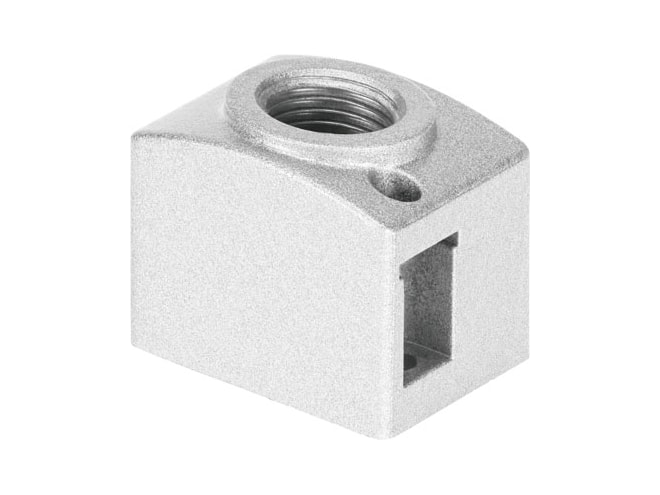

Festo VABF-B10-25-P1-G14 Supply Plate

$4.97
Part Numbers
  • VABF-B10-25-P1-G14
  • 8026317
Highlights...

Features

  • -0.09MPA operating pressure
  • 1MPA operating pressure
  • -0.9BAR operating pressure
  • 10BAR operating pressure
  • 2 - Moderate corrosion stress corrosion resistance class cRC
  • VDMA24364-B1/B2-L lABS (PWIS) conformity
  • 3NM max. tightening torque
  • 26G product weight
  • With through-hole type of mounting
  • RoHS-compliant note on materials
  • Die-cast aluminium material supply plate
  • Pneumatic connection g1/4 , port 1
