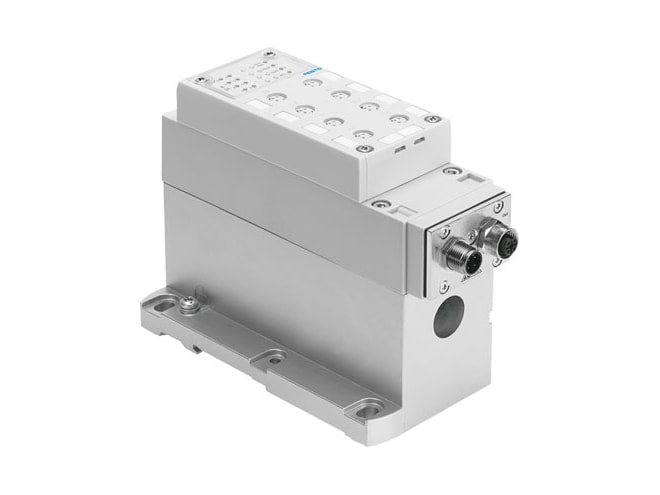

Festo VABE-S6-1LF-C-A8-E Electrical Interface

$468.00
Part Numbers
  • VABE-S6-1LF-C-A8-E
  • 549043
Highlights...

Features

  • Optional mounting position
  • Socket, M12x1, 4-pin field bus interface
  • Plug connector, M12x1, 4-pin field bus interface
  • 8 max. number of valve coils
  • 2 number of slaves per device
  • 8 max. number of outputs
  • 8 max. number of inputs
  • 24V nominal operating voltage dC
  • +/- 10 % permissible voltage fluctuations
  • To EU EMC Directive cE mark (see declaration of conformity)
  • To EU Low Voltage Directive cE mark (see declaration of conformity)
  • 0 - No corrosion stress corrosion resistance class cRC
  • VDMA24364-B1/B2-L lABS (PWIS) conformity
  • 0 - 90% relative air humidity
  • IP65 degree of protection
  • 850G product weight
  • Fieldbus electrical control
  • Via CPX electrical connection
  • 1 ... 31 (0) addressing range
  • Set using AS-Interface addressing device addressing range
  • Optocoupler electrical isolation fieldbus interface
  • RoHS-compliant note on materials
  • NBR material seals
  • PUR material seals
  • Die-cast aluminium material housing
  • PA material housing
  • -5GC ambient temperature to 50GC ambient temperature
  • -20GC to 60GC storage temperature
