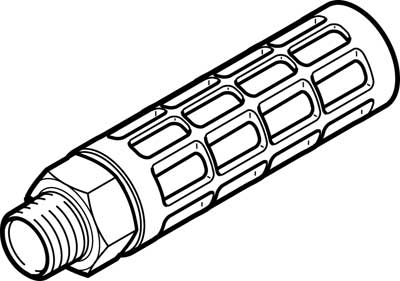

Festo 151990 / U-1-B Silencer

Pneumatic muffler with G1 and Male thread.

$52.10
Part Numbers
  • U-1-B
  • 151990
Highlights...

Features

  • Optional mounting position
  • 991473 symbol
  • 0MPA operating pressure complete temperature range
  • 1MPA operating pressure complete temperature range
  • 0BAR operating pressure complete temperature range
  • 10BAR operating pressure complete temperature range
  • 0PSI operating pressure complete temperature range
  • 145PSI operating pressure complete temperature range
  • 17500L2 flow rate to atmosphere
  • Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
  • Lubricated operation possible note on operating and pilot medium
  • 1 - Low corrosion stress corrosion resistance class cRC
  • VDMA24364-B1/B2-L lABS (PWIS) conformity
  • 85DBA sound pressure level
  • 233G product weight
  • PE material shock absorber insert
  • Aluminium material screwed plug
  • RoHS-compliant note on materials
  • Aluminium material housing
  • -10GC ambient temperature to 70GC ambient temperature
  • Pneumatic connection g1
