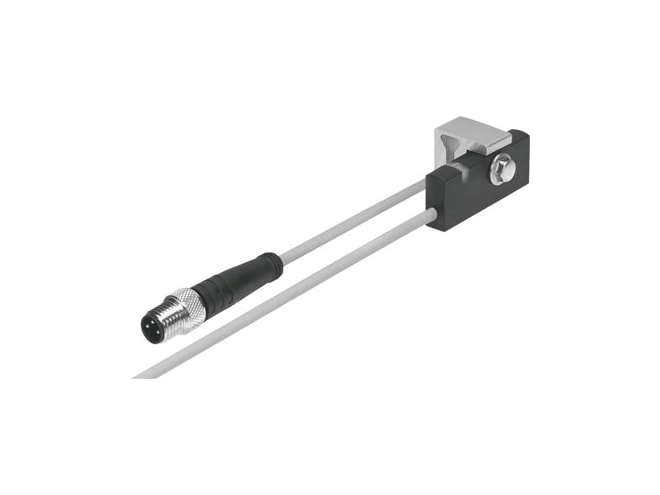

Festo SMT-C1-PS-24V-K-0,3-M8D Proximity Sensor

Non-contact proximity sensor with 0.3m cable length and Cable with plug M8x1, rotatable thread connection.

$102.95
Part Numbers
  • SMT-C1-PS-24V-K-0,3-M8D
  • 571342
Highlights...

Features

  • Block design design
  • EN 60947-5-2 based on standard
  • 991153 symbol
  • RCM trademark approval
  • To EU EMC Directive cE mark (see declaration of conformity)
  • In accordance with EU RoHS Directive cE mark (see declaration of conformity)
  • To UK instructions for EMC cE marking (see declaration of conformity)
  • To UK RoHS instructions cE marking (see declaration of conformity)
  • RoHS-compliant note on materials
  • Free of halogen note on materials
  • Support / actuator-sensor overview "The right sensor for the actuator" instructions on use
  • Position measured variable
  • Magneto-inductive measuring principle
  • -20GC ambient temperature
  • 70GC ambient temperature
  • PNP switching output
  • N/O contact switching element function
  • 2MM hysteresis
  • 0.5MS switch-on time
  • 0.5MS switch-off time
  • 200MA max. output current
  • 6W max. switching capacity dC
  • 1.8V voltage drop
  • Adapted to MZ, MY, ME coils inductive protective circuit
  • 0MA min. load current
  • 0.1MA off-state current
  • Pulsed short circuit current rating
  • Available overload protection
  • 24V rated operational voltage dC
  • 10V operational voltage range dC
  • 30V operational voltage range dC
  • 10 % residual ripple
  • For all electrical connections reverse polarity protection
  • Cable with plug electrical connection 1, connection type
  • M8x1, A-coded, to EN 61076-2-104 electrical connection 1, connector system
  • 3 electrical connection 1, number of connections/cores
  • Screw-type lock electrical connection 1, type of mounting
  • 991155 electrical connection 1, connection pattern
  • In-line connection outlet orientation
  • Gold-plated brass material electrical contact
  • 0.3M cable length
  • Grey cable sheath colour
  • TPE-O material cable sheath
  • Clamped type of mounting
  • 1.2NM tightening torque
  • Optional mounting position
  • 24.4G product weight
  • Black housing colour
  • Wrought aluminium alloy material housing
  • Brass, nickel-plated material housing
  • PP material housing
  • TPE-O material housing
  • TPE-U(PU) material housing
  • High-alloy stainless steel material housing
  • Yellow LED switching status indication
  • -20GC ambient temperature with moving cable
  • 70GC ambient temperature with moving cable
  • IP65 degree of protection
  • IP68 degree of protection
  • To IEC 60529 degree of protection
  • VDMA24364-B2-L lABS (PWIS) conformity
  • See supplementary material information suitable for use with food
