Festo SDAP-MHS-M100-1L-A-E-0.3-M8 Position Transmitter | Motion World

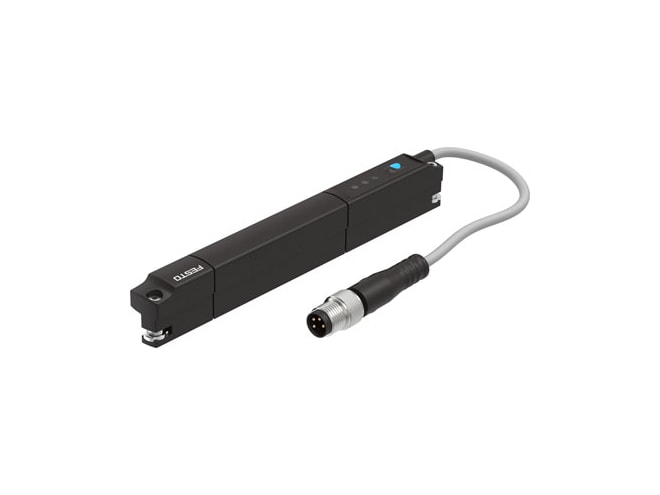

Festo SDAP-MHS-M100-1L-A-E-0.3-M8 Position Transmitter

$391.26

Part Numbers

SDAP-MHS-M100-1L-A-E-0.3-M8
8050121

Highlights...

SDAP-MHS-M100-1L-A-E-0.3-M8
By Festo
FREE Shipping on orders of $1,000 or more
Manufacturer has 6 in stock.
Additional 2-3 days to process. Call for expedite options.

Features

For T-slot design
995389 symbol
RCM trademark approval
C UL us listed (OL) approval
To EU EMC Directive cE mark (see declaration of conformity)
In accordance with EU RoHS Directive cE mark (see declaration of conformity)
To UK instructions for EMC cE marking (see declaration of conformity)
To UK RoHS instructions cE marking (see declaration of conformity)
RoHS-compliant note on materials
Free of halogen note on materials
Position measured variable
Magnetic Hall measuring principle
0MM sensing range
100000MM sensing range
-25GC ambient temperature
70GC ambient temperature
1MS typical sampling interval
3M/S max. travel speed
0.05MM displacement resolution
4 - 20 mA analogue output
0.16Y14 sensitivity
±0.25 mm typical linearity error
500OHM max. load resistance current output
Yes short circuit current rating
Available overload protection
15V operational voltage range dC
30V operational voltage range dC
10 % residual ripple
For all electrical connections reverse polarity protection
Cable with plug electrical connection 1, connection type
M8x1, A-coded, to EN 61076-2-104 electrical connection 1, connector system
4 electrical connection 1, number of connections/cores
Screw-type lock electrical connection 1, type of mounting
991171 electrical connection 1, connection pattern
In-line connection outlet orientation
Gold-plated copper alloy material electrical contact
Bending strength: to Festo standard test conditions cable
Torsional resistance: > 300,000 cycles, ± 270°/0.1 m test conditions cable
Energy chain: > 5 million cycles, bending radius 28 mm test conditions cable
0.3M cable length
Suitable for energy chains/robot applications cable characteristic
Grey cable sheath colour
TPE-U(PUR) material cable sheath
Screw-clamped type of mounting
Insertable in the slot from above type of mounting
Optional mounting position
26G product weight
Brass, nickel-plated material housing
PA-reinforced material housing
Polyester material housing
High-alloy stainless steel material housing
Nickel-plated brass material union nut
Polyester material foil
Green LED ready status indication
Red LED status indication
-20GC ambient temperature with moving cable
70GC ambient temperature with moving cable
IP65 degree of protection
IP68 degree of protection
VDMA24364-B2-L lABS (PWIS) conformity
