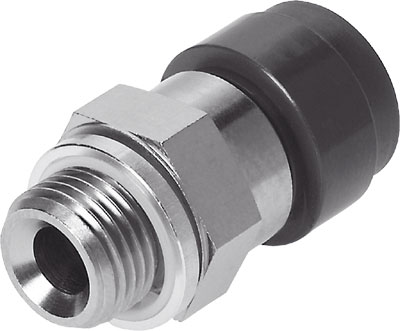

Festo 186319 / QS-V0-G1/4-12 Push-in Fitting

Features

• Standard size
• 8.5MM nominal size
• UL94 V-0 (housing) fire test material
• UL94 V-0 (releasing ring) fire test material
• Sealing ring type of seal on screwed plug
• Straight design design
• 1 size of pack
• Push-pull principle design
• -0.095MPA operating pressure complete temperature range
• 1MPA operating pressure complete temperature range
• -0.95BAR operating pressure complete temperature range
• 10BAR operating pressure complete temperature range
• -13.775PSI operating pressure complete temperature range
• 145PSI operating pressure complete temperature range
• Water: max. 0.6 MPa at max. 50°C note on operating pressure
• Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
• Water (liquid, ice-free) operating medium
• Lubricated operation possible note on operating and pilot medium
• 2 - Moderate corrosion stress corrosion resistance class cRC
• VDMA24364-B1/B2-L lABS (PWIS) conformity
• 9NM nominal torque
• ± 20% tolerance for nominal tightening torque
• 30G product weight
• External hexagon, size 21 mm type of mounting
• Black colour of release ring
• Nickel-plated brass material screwed plug
• RoHS-compliant note on materials
• PBT material housing
• Aluminium material thread seal
• PBT material thread seal
• PBT material release ring
• NBR material tubing seal
• High-alloy stainless steel material tubing clamp component
• Brass material tubing clamp component
• 0GC ambient temperature to 60GC ambient temperature
• Pneumatic connection male thread G1/4 , port 1
• Pneumatic connection for tubing outer diameter of 12 mm , port 2
