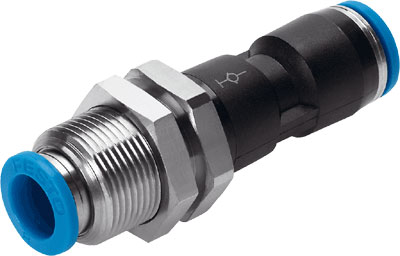

Festo 130639 / QSSK-8 Push-in Bulkhead Connector

$14.29
Part Numbers
  • QSSK-8
  • 130639
Highlights...

Features

  • Standard size
  • 4.3MM nominal size
  • PAN- approved tubing type
  • PAN-MF- approved tubing type
  • PAN-R- approved tubing type
  • PAN-V0- approved tubing type
  • PEN- approved tubing type
  • PFAN- approved tubing type
  • PLN- approved tubing type
  • PTFEN- approved tubing type
  • PUN- approved tubing type
  • PUN-CM- approved tubing type
  • PUN-DUO- approved tubing type
  • PUN-H- approved tubing type
  • PUN-H-DUO- approved tubing type
  • PUN-S- approved tubing type
  • PUN-S-DUO- approved tubing type
  • PUN-V0- approved tubing type
  • 18.3MM tubing insertion depth
  • Optional mounting position
  • Bulkhead design
  • 1 size of pack
  • Push-pull principle design
  • -0.095MPA operating pressure complete temperature range
  • 0.6MPA operating pressure complete temperature range
  • -0.95BAR operating pressure complete temperature range
  • 6BAR operating pressure complete temperature range
  • -13.775PSI operating pressure complete temperature range
  • 87PSI operating pressure complete temperature range
  • -0.095MPA temperature-dependent operating pressure
  • 1.4MPA temperature-dependent operating pressure
  • -0.95BAR temperature-dependent operating pressure
  • 14BAR temperature-dependent operating pressure
  • -13.775PSI temperature-dependent operating pressure
  • 203PSI temperature-dependent operating pressure
  • See certificate maritime classification
  • Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
  • Lubricated operation possible note on operating and pilot medium
  • 1 - Low corrosion stress corrosion resistance class cRC
  • VDMA24364-B1/B2-L lABS (PWIS) conformity
  • 38G product weight
  • Blue colour of release ring
  • RoHS-compliant note on materials
  • PBT material housing
  • POM material release ring
  • NBR material tubing seal
  • High-alloy stainless steel material tubing clamp component
  • -10GC ambient temperature to 80GC ambient temperature
  • Pneumatic connection for tubing outer diameter of 8 mm , port 1
  • Pneumatic connection for tubing outside diameter of 8 mm , port 2
  • Water operating medium
