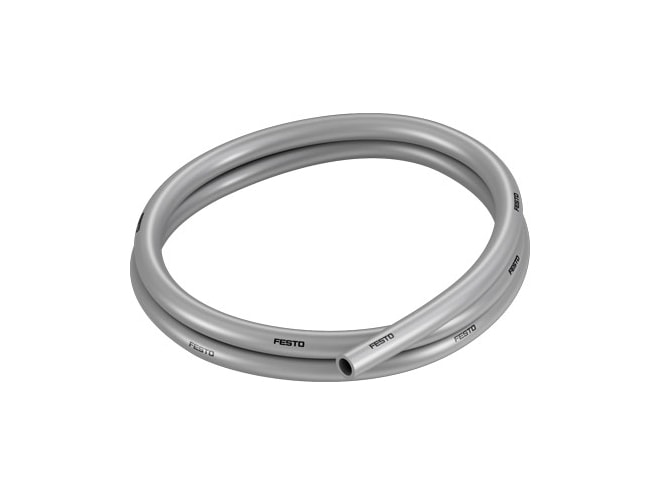

Name: Festo PUN-H-12X2-SI Plastic Tubing
Price: 241.5 USD
Availability: InStock

$241.50

Part Numbers

PUN-H-12X2-SI
558282

Highlights...

PUN-H-12X2-SI
By Festo
FREE Shipping on orders of $1,000 or more
Manufacturer has 3350 in stock.
Additional 2-3 days to process. Call for expedite options.

Features

12MM outside diameter
62MM flow-relevant bending radius
8MM inside diameter
33MM min. bending radius
TPE-U Ether based instructions on use
Suitable for energy chains tubing characteristics
-0.095MPA operating pressure complete temperature range
0.6MPA operating pressure complete temperature range
-0.95BAR operating pressure complete temperature range
6BAR operating pressure complete temperature range
-13.775PSI operating pressure complete temperature range
87PSI operating pressure complete temperature range
-0.095MPA temperature-dependent operating pressure
1MPA temperature-dependent operating pressure
-0.95BAR temperature-dependent operating pressure
10BAR temperature-dependent operating pressure
-13.775PSI temperature-dependent operating pressure
145PSI temperature-dependent operating pressure
Water: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0 - 60 °C note on operating pressure
German Technical Control Board (TÜV) approval
B 013277 0506 00 certificate issuing authority
Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
Water (liquid, ice-free) operating medium
UL94 HB fire test material
VDMA24364-B2-L lABS (PWIS) conformity
Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils suitability for the production of li-ion batteries
Element installed statically, no meaningful evaluation possible according to ISO 14644-1 cleanroom class
See supplementary material information suitable for use with food
0.0729K/M product weight according to length
Silver colour
D 52 +/-3 shore hardness
RoHS-compliant note on materials
TPE-U(PU) material tubing
-35GC ambient temperature to 60GC ambient temperature
Pneumatic connection for push-in connector outside diameter of 12 mm
