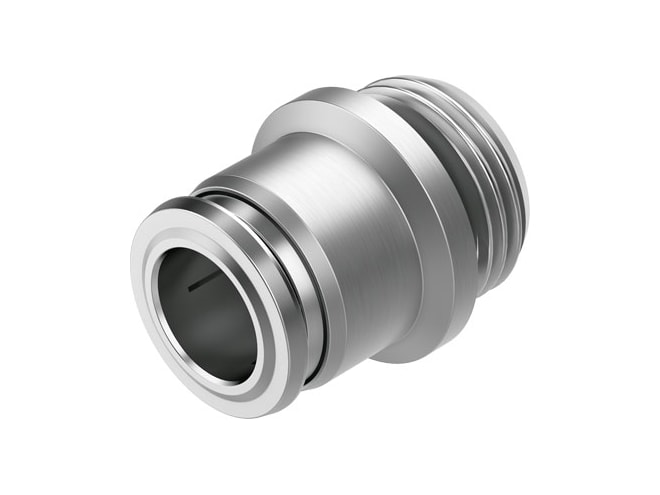

Festo NPQR-DK-G12-Q12 Push-in Fitting

$55.82

Part Numbers

NPQR-DK-G12-Q12
8085669

Highlights...

NPQR-DK-G12-Q12
By Festo
FREE Shipping on orders of $1,000 or more
Manufacturer has 82 in stock.
Additional 2-3 days to process. Call for expedite options.

Overview

Features

Standard size
8.4MM nominal size
22.35MM tubing insertion depth
Sealing ring type of seal on screwed plug
Optional mounting position
Straight design design
1 size of pack
Push-pull principle design
997424 symbol
-0.095MPA operating pressure complete temperature range
1.6MPA operating pressure complete temperature range
-0.95BAR operating pressure complete temperature range
16BAR operating pressure complete temperature range
-13.775PSI operating pressure complete temperature range
232PSI operating pressure complete temperature range
Water: max. 0.7 MPa at 0 - 80 °C note on operating pressure
NSF C0556009 certificate issuing authority
Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
Water (liquid, ice-free) operating medium
Lubricated operation possible note on operating and pilot medium
4 - Very high corrosion stress corrosion resistance class cRC
VDMA24364-B2-L lABS (PWIS) conformity
Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils suitability for the production of li-ion batteries
Class 4 according to ISO 14644-1 cleanroom class
See declaration of conformity suitable for use with food
NSF/ANSI 169 suitable for use with food
9NM nominal torque
± 20% tolerance for nominal tightening torque
40.7G product weight
Internal hexagon, size 8 mm type of mounting
RoHS-compliant note on materials
High-alloy stainless steel material housing
FPM material thread seal
High-alloy stainless steel guard ring material
High-alloy stainless steel material release ring
FPM material tubing seal
High-alloy stainless steel material tubing clamp component
PPSU thrust ring material
-20GC ambient temperature to 150GC ambient temperature
Pneumatic connection male thread G1/2 , port 1
Pneumatic connection for tubing outer diameter of 12 mm , port 2
