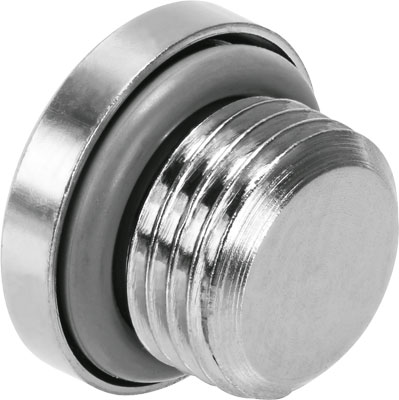

Festo 578406 / NPQH-BK-G18-P10 Plug Screw

Features

• Standard size
• Sealing ring type of seal on screwed plug
• Optional mounting position
• Plug screw design
• 10 size of pack
• 997424 symbol
• -0.095MPA operating pressure complete temperature range
• 2MPA operating pressure complete temperature range
• -0.95BAR operating pressure complete temperature range
• 20BAR operating pressure complete temperature range
• -13.775PSI operating pressure complete temperature range
• 290PSI operating pressure complete temperature range
• Water: max. 0.6 MPa at 0 - 50 °C note on operating pressure
• NSF C0523185 certificate issuing authority
• Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
• Water (liquid, ice-free) operating medium
• Lubricated operation possible note on operating and pilot medium
• 3 - high corrosion stress corrosion resistance class cRC
• VDMA24364-B1/B2-L lABS (PWIS) conformity
• Element installed statically, no meaningful evaluation possible according to ISO 14644-1 cleanroom class
• See declaration of conformity suitable for use with food
• NSF/ANSI 169 suitable for use with food
• 6NM nominal torque
• ± 20% tolerance for nominal tightening torque
• 4.4G product weight
• Internal hexagon, size 5 mm type of mounting
• RoHS-compliant note on materials
• Brass, chemically nickel-plated material housing
• FPM material thread seal
• Brass, chemically nickel-plated material release ring
• 0GC ambient temperature to 150GC ambient temperature
• Pneumatic connection male thread G1/8 , port 1
