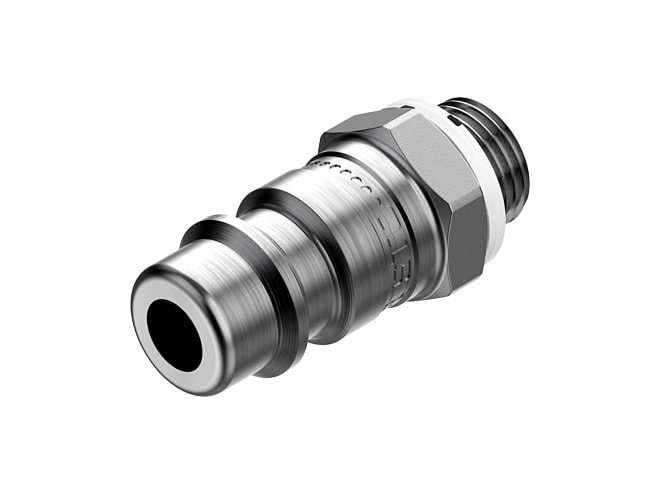

Festo NPHS-S6-M-G18 Quick Coupling Plug

$60.60
Part Numbers
  • NPHS-S6-M-G18
  • 8059257
Highlights...

Features

  • 5.5MM nominal size
  • -0.095MPA operating pressure complete temperature range
  • 1.2MPA operating pressure complete temperature range
  • -0.95BAR operating pressure complete temperature range
  • 12BAR operating pressure complete temperature range
  • -13.775PSI operating pressure complete temperature range
  • 174PSI operating pressure complete temperature range
  • 875L2 standard nominal flow rate
  • 1238L2 standard nominal flow rate
  • 948.5L2 nominal flow rate standardised according to iSO 8778
  • 1342L2 nominal flow rate standardised according to iSO 8778
  • Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
  • Lubricated operation possible note on operating and pilot medium
  • 1 - Low corrosion stress corrosion resistance class cRC
  • VDMA24364-B1/B2-L lABS (PWIS) conformity
  • 3.5NM nominal torque
  • ± 10% tolerance for nominal tightening torque
  • 19G product weight
  • RoHS-compliant note on materials
  • PA66-GF30/TPE-U material thread seal
  • Galvanised steel information on materials
  • -10GC ambient temperature to 60GC ambient temperature
  • Pneumatic connection male thread G1/8 , port 1
