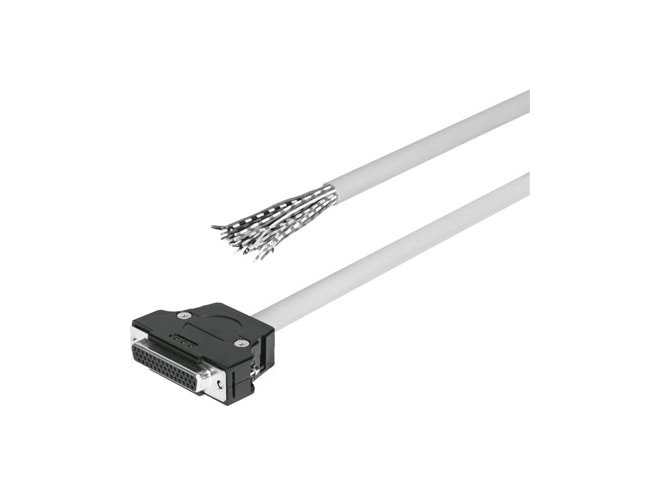

Festo NEBV-S1G44-K-2.5-N-LE44-S6 Connecting Cable

Features

• DIN 47100 based on standard
• Without inscription label holder cable designation
• 50 frequency of connection
• 455G product weight
• Field device side electrical connection 1, function
• Angular electrical connection 1, design
• Socket electrical connection 1, connection type
• Straight electrical connection 1, cable outlet
• Sub-D electrical connection 1, connector system
• 44 electrical connection 1, number of connections/cores
• 44 electrical connection 1, used connections/cores
• 2x screw 4-40 UNC electrical connection 1, type of mounting
• 995646 electrical connection 1, connection pattern
• Controller side electrical connection 2, function
• Cable electrical connection 2, connection type
• Open end electrical connection 2, connector system
• 44 electrical connection 2, number of connections/cores
• 44 electrical connection 2, used connections/cores
• 0V operational voltage range dC
• 30V operational voltage range dC
• 0.86A current rating at 40° c
• 2.4KV immunity to surge
• Yes reverse polarity protection
• 2.5M cable length
• Standard cable characteristic
• Test conditions on request test conditions cable
• 42MM bending radius, fixed cable
• 126MM bending radius, moving cable
• 10.2MM cable diameter
• ± 0.3 mm cable diameter tolerance
• 44 x 0.14 mm² cable structure
• 0.14I2 nominal cross section conductor
• Cut off bluntly wire ends
• IP40 degree of protection
• In assembled state note on degree of protection
• -35GC ambient temperature
• 80GC ambient temperature
• -5GC ambient temperature with moving cable
• 80GC ambient temperature with moving cable
• In accordance with EU RoHS Directive cE mark (see declaration of conformity)
• To UK RoHS instructions cE marking (see declaration of conformity)
• VDMA24364-B2-L lABS (PWIS) conformity
• RoHS-compliant note on materials
• 2 pollution degree
• 0 - No corrosion stress corrosion resistance class cRC
• PVC material cable sheath
• Grey cable sheath colour
• PC-reinforced material housing
• Black housing colour
• Nickel-plated brass material screws
• Bronze material electrical contact
• Bronze material electrical contact
• PVC material insulating sheath
• -25GC to 75GC storage temperature
