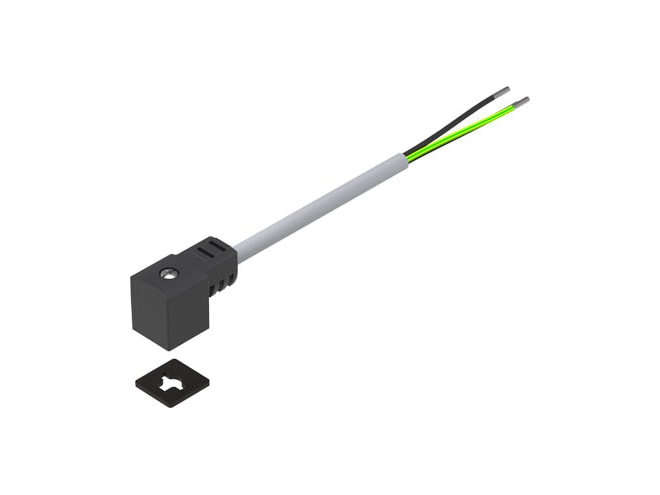

Festo NEBV-C1SW3-K-2.5-N-LE3-S9 Connecting Cable

Features

• Without inscription label holder cable designation
• 50 frequency of connection
• 125G product weight
• Field device side electrical connection 1, function
• Angular electrical connection 1, design
• Socket, narrow electrical connection 1, connection type
• Angled electrical connection 1, cable outlet
• 180° rotatable electrical connection 1, note on cable outlet
• Plug pattern type C to EN 175301-803 electrical connection 1, connector system
• 4 electrical connection 1, number of connections/cores
• 4 electrical connection 1, used connections/cores
• On solenoid valve via M2.5 central screw electrical connection 1, type of mounting
• 995798 electrical connection 1, connection pattern
• Controller side electrical connection 2, function
• Cable electrical connection 2, connection type
• Open end electrical connection 2, connector system
• 3 electrical connection 2, number of connections/cores
• 3 electrical connection 2, used connections/cores
• 0V operational voltage range dC
• 230V operational voltage range dC
• 0V operational voltage range aC
• 230V operational voltage range aC
• 6A current rating at 40° c
• 4KV immunity to surge
• Bipolar reverse polarity protection
• Available protective conductor connection
• 2.5M cable length
• Standard cable characteristic
• Test conditions on request test conditions cable
• 52MM bending radius, moving cable
• 5.2MM cable diameter
• ± 0.1 mm cable diameter tolerance
• 3 x 0.5 mm² cable structure
• 0.5I2 nominal cross section conductor
• IP65 degree of protection
• IP67 degree of protection
• In assembled state note on degree of protection
• -20GC ambient temperature
• 70GC ambient temperature
• -5GC ambient temperature with moving cable
• 70GC ambient temperature with moving cable
• To EU Low Voltage Directive cE mark (see declaration of conformity)
• In accordance with EU RoHS Directive cE mark (see declaration of conformity)
• To UK RoHS instructions cE marking (see declaration of conformity)
• To UK regulations for electrical equipment cE marking (see declaration of conformity)
• VDMA24364-B2-L lABS (PWIS) conformity
• RoHS-compliant note on materials
• 3 pollution degree
• 3 - high corrosion stress corrosion resistance class cRC
• PVC material cable sheath
• Grey cable sheath colour
• TPE-U(PU) material housing
• Black housing colour
• Stainless steel material screws
• HNBR material seals
• Copper alloy, tin-plated material electrical contact
• PVC material insulating sheath
