$132.13

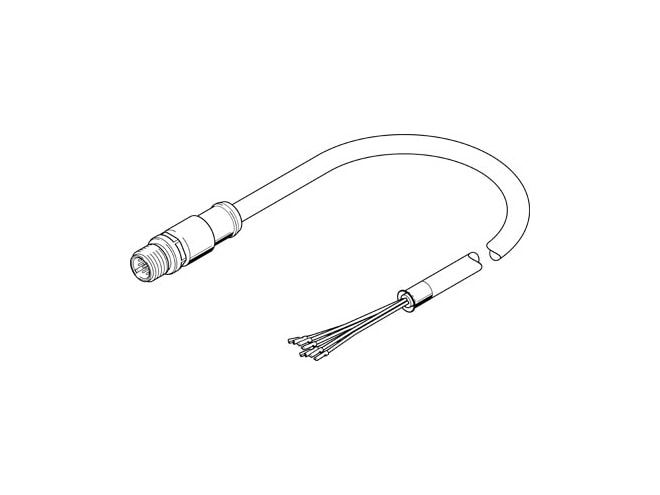

  • NEBS-SM12G12-E-5-N-LE12
  • 3947395

Overview

Features

  • EN 61076-2-101 conforms to standard
  • With accessories cable designation
  • 100 frequency of connection
  • Field device side electrical connection 1, function
  • Round electrical connection 1, design
  • Plugs electrical connection 1, connection type
  • Straight electrical connection 1, cable outlet
  • M12x1, A-coded to EN 61076-2-101 electrical connection 1, connector system
  • 12 electrical connection 1, number of connections/cores
  • 12 electrical connection 1, used connections/cores
  • Screw-type lock with hexagon, size 13 electrical connection 1, type of mounting
  • 995669 electrical connection 1, connection pattern
  • Controller side electrical connection 2, function
  • Cable electrical connection 2, connection type
  • Open end electrical connection 2, connector system
  • 12 electrical connection 2, number of connections/cores
  • 12 electrical connection 2, used connections/cores
  • 0V operational voltage range dC
  • 30V operational voltage range dC
  • 0V operational voltage range aC
  • 30V operational voltage range aC
  • 1.5A current rating at 40° c
  • 0.5KV immunity to surge
  • 5M cable length
  • Suitable for energy chains cable characteristic
  • Test conditions on request test conditions cable
  • 32MM bending radius, fixed cable
  • 65MM bending radius, moving cable
  • 6.5MM cable diameter
  • 12 x 0.25 mm² cable structure
  • 0.25I2 nominal cross section conductor
  • Cut off bluntly wire ends
  • IP67 degree of protection
  • In assembled state note on degree of protection
  • -5GC ambient temperature
  • 70GC ambient temperature
  • -5GC ambient temperature with moving cable
  • 70GC ambient temperature with moving cable
  • In accordance with EU RoHS Directive cE mark (see declaration of conformity)
  • To UK RoHS instructions cE marking (see declaration of conformity)
  • VDMA24364-B2-L lABS (PWIS) conformity
  • RoHS-compliant note on materials
  • 3 pollution degree
  • 1 - Low corrosion stress corrosion resistance class cRC
  • TPE-U(PUR) material cable sheath
  • Black cable sheath colour
  • TPE-U(PUR) material housing
  • Black housing colour
  • Die-cast zinc, nickel-plated material screw-type lock
  • Gold-plated brass material electrical contact
