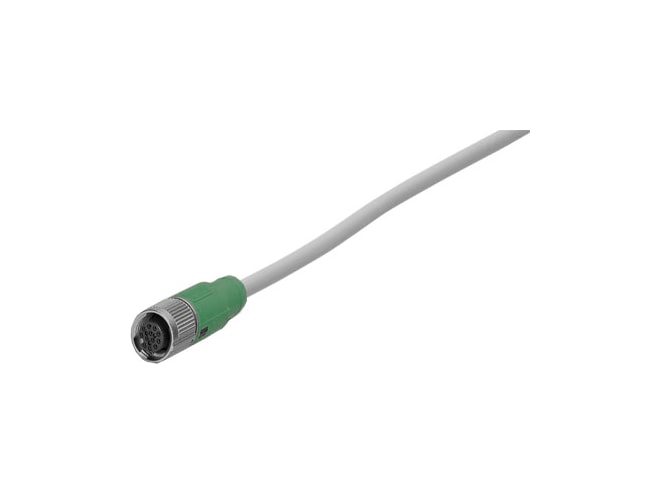

Festo NEBS-M12G12-KS-5-LE12 Connecting Cable

Features

• With label holder cable designation
• Optional mounting position
• 492G product weight
• Straight socket, M12x1, 12-pin, A-coded electrical connection 1
• Open end, 12-wire electrical connection 2
• 0V operational voltage range dC
• 30V operational voltage range dC
• 30V nominal operating voltage dC
• 1.5A current rating at 40° c
• 0.8KV immunity to surge
• Yes shielding
• 5M cable length
• Basic cable characteristic
• Bending strength: to Festo standard test conditions cable
• 85MM min. cable bending radius
• 42.5MM bending radius, fixed cable
• 8.5MM cable diameter
• ± 0.2 mm cable diameter tolerance
• 12 x 0.14 mm² cable structure
• 0.14I2 connection cross section
• Pin 1 = brown colour code wire insulation
• Pin 10 = violet colour code wire insulation
• Pin 11 = grey/pink colour code wire insulation
• Pin 12 = red/blue colour code wire insulation
• Pin 2 = blue colour code wire insulation
• Pin 3 = white colour code wire insulation
• Pin 4 = green colour code wire insulation
• Pin 5 = pink colour code wire insulation
• Pin 6 = yellow colour code wire insulation
• Pin 7 = black colour code wire insulation
• Pin 8 = grey colour code wire insulation
• Pin 9 = red colour code wire insulation
• IP67 degree of protection
• -30GC ambient temperature
• 80GC ambient temperature
• -25GC ambient temperature with moving cable
• 80GC ambient temperature with moving cable
• In accordance with EU RoHS Directive cE mark (see declaration of conformity)
• To UK RoHS instructions cE marking (see declaration of conformity)
• VDMA24364-B2-L lABS (PWIS) conformity
• RoHS-compliant note on materials
• 3 pollution degree
• 0 - No corrosion stress corrosion resistance class cRC
• TPE-U(PUR) material cable sheath
• Black cable sheath colour
• Die-cast zinc material union nut
• NBR material seals
• Brass material electrical contact
• Nickel-plated and gold-plated material electrical contact
