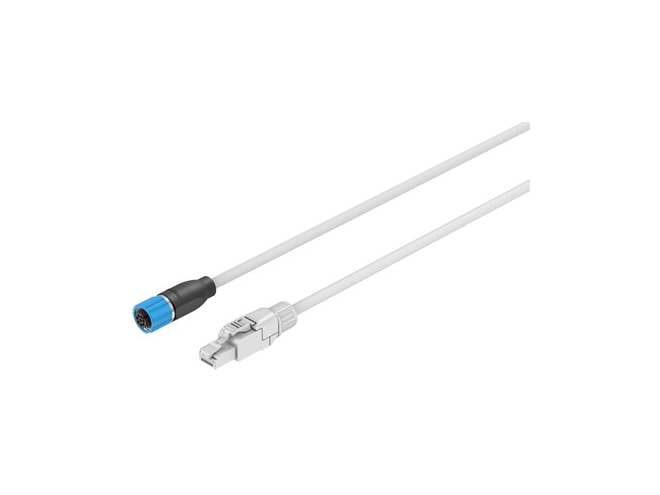

Festo NEBM-M12G8-E-2.5-N-R3G8 Encoder Cable

Features

• Without inscription label holder cable designation
• 200G product weight
• Field device side electrical connection 1, function
• Round electrical connection 1, design
• Socket electrical connection 1, connection type
• Straight electrical connection 1, cable outlet
• M12x1, A-coded to EN 61076-2-101 electrical connection 1, connector system
• 8 electrical connection 1, number of connections/cores
• 8 electrical connection 1, used connections/cores
• 992265 electrical connection 1, connection pattern
• Controller side electrical connection 2, function
• Angular electrical connection 2, design
• Plugs electrical connection 2, connection type
• Straight electrical connection 2, cable outlet
• RJ45 electrical connection 2, connector system
• 8 electrical connection 2, number of connections/cores
• 8 electrical connection 2, used connections/cores
• 995653 electrical connection 2, connection pattern
• 0V operational voltage range dC
• 30V operational voltage range dC
• 24V nominal operating voltage dC
• 0V operational voltage range aC
• 30V operational voltage range aC
• 24V nominal operating voltage aC
• Yes shielding
• 2.5M cable length
• Suitable for energy chains cable characteristic
• 48MM bending radius, moving cable
• 5.8MM cable diameter
• 1 x 4 x 0.15 mm² + 4 x 1 x 0.34 mm² cable structure
• 0.15I2 nominal cross section conductor
• IP65 degree of protection
• IP30 for Sub-D plug connector note on degree of protection
• In assembled state note on degree of protection
• -40GC ambient temperature
• 80GC ambient temperature
• -5GC ambient temperature with moving cable
• 80GC ambient temperature with moving cable
• In accordance with EU RoHS Directive cE mark (see declaration of conformity)
• To UK RoHS instructions cE marking (see declaration of conformity)
• VDMA24364 zone III lABS (PWIS) conformity
• RoHS-compliant note on materials
• 0 - No corrosion stress corrosion resistance class cRC
• TPE-U(PUR) material cable sheath
• Black cable sheath colour
