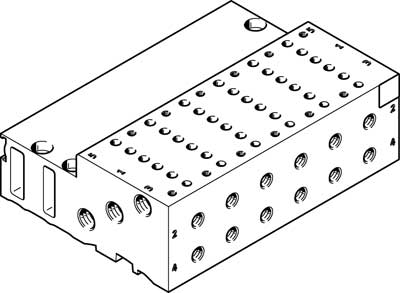

Festo 525129 / MHA2-PR6-5-M5 Manifold

$189.52
Part Numbers
  • MHA2-PR6-5-M5
  • 525129
Highlights...

Features

  • 6 max. number of valve positions
  • 2 - Moderate corrosion stress corrosion resistance class cRC
  • VDMA24364-B1/B2-L lABS (PWIS) conformity
  • 426G product weight
  • With through-hole mounting method for sub-base
  • With H-rail mounting method for sub-base
  • Via female thread mounting method for valve
  • Wrought aluminium alloy material sub-base
  • Pneumatic connection m7 , port 1
  • Pneumatic connection m5 , port 2
  • Pneumatic connection m7 , port 3
  • Pneumatic connection m5 , port 4
  • Pneumatic connection m7 , port 5
