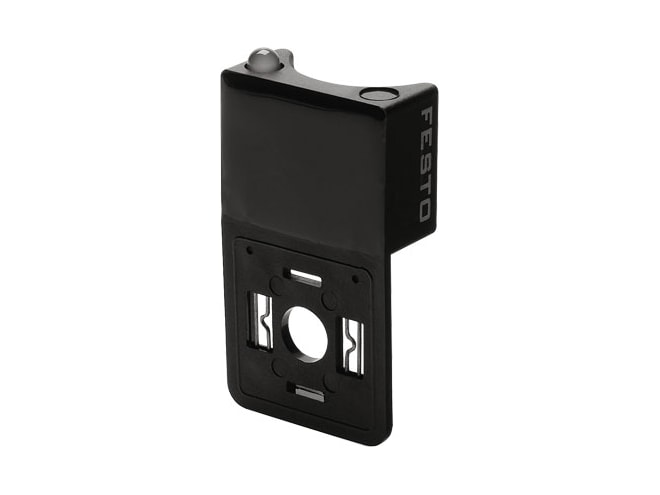

Festo MCL-230AC Indicator Insert

For mounting between the solenoid coil and connector socket or plug Type A, plug, to DIN EN 175301-803.

$33.38
Part Numbers
  • MCL-230AC
  • 10001
Highlights...

Features

  • 12G product weight
  • Type A electrical connection
  • Plugs electrical connection
  • To DIN EN 175301-803 electrical connection
  • 230V nominal operating voltage aC
  • 50HZ mains frequency
  • 60HZ mains frequency
  • -20 % / +15 % permissible voltage fluctuations
  • IP65 degree of protection
  • To IEC 60529 degree of protection
  • To EU Low Voltage Directive cE mark (see declaration of conformity)
  • To UK regulations for electrical equipment cE marking (see declaration of conformity)
  • VDMA24364-B2-L lABS (PWIS) conformity
  • PA6 reinforced material housing
  • -20GC ambient temperature to 60GC ambient temperature
