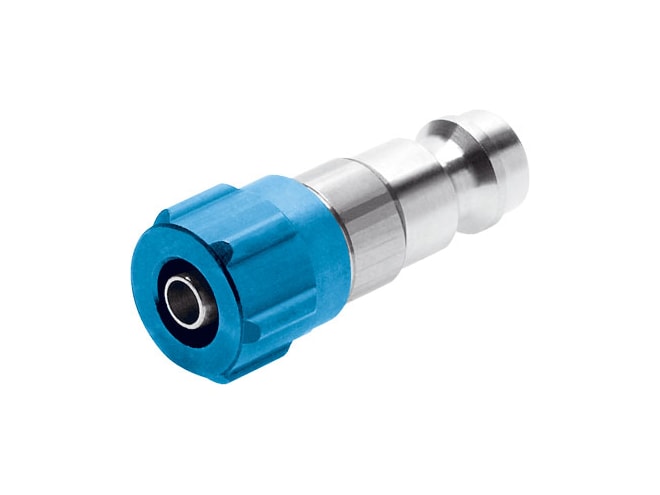

Festo KS3-CK-4 Quick Coupling Plug

$6.34
Part Numbers
  • KS3-CK-4
  • 3326
Highlights...

Features

  • 2.9MM nominal size
  • -0.095MPA operating pressure complete temperature range
  • 1.2MPA operating pressure complete temperature range
  • -0.95BAR operating pressure complete temperature range
  • 12BAR operating pressure complete temperature range
  • -13.775PSI operating pressure complete temperature range
  • 174PSI operating pressure complete temperature range
  • 158L2 standard nominal flow rate
  • 185L2 standard nominal flow rate
  • 171.3L2 nominal flow rate standardised according to iSO 8778
  • 200.5L2 nominal flow rate standardised according to iSO 8778
  • Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
  • Lubricated operation possible note on operating and pilot medium
  • 1 - Low corrosion stress corrosion resistance class cRC
  • VDMA24364-B1/B2-L lABS (PWIS) conformity
  • 16G product weight
  • Nickel-plated wrought aluminium alloy material union nut
  • RoHS-compliant note on materials
  • Brass, nickel plated information on materials
  • -10GC ambient temperature to 60GC ambient temperature
  • Pneumatic connection for tubing outside diameter of 6 mm , port 1
  • Pneumatic connection for barbed fitting I.D. 4 mm with union nut , port 1
