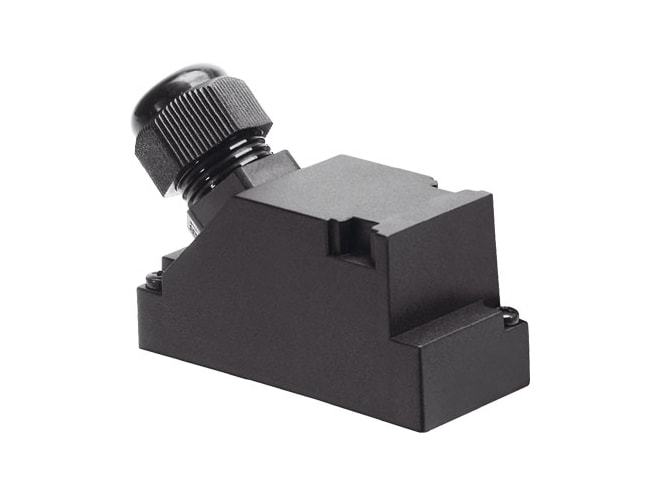

Festo KMP3-25P-16-10 Connecting Cable

Features

• DIN 41652 based on standard
• With accessories cable designation
• 50 frequency of connection
• 1303G product weight
• Field device side electrical connection 1, function
• Angular electrical connection 1, design
• Socket electrical connection 1, connection type
• Angled electrical connection 1, cable outlet
• Sub-D electrical connection 1, connector system
• 25 electrical connection 1, number of connections/cores
• 18 electrical connection 1, used connections/cores
• 2x screw M3 electrical connection 1, type of mounting
• 995642 electrical connection 1, connection pattern
• Controller side electrical connection 2, function
• Cable electrical connection 2, connection type
• Open end electrical connection 2, connector system
• 18 electrical connection 2, number of connections/cores
• 18 electrical connection 2, used connections/cores
• 0V operational voltage range dC
• 30V operational voltage range dC
• 24V nominal operating voltage dC
• 3A current rating at 40° c
• 1KV immunity to surge
• 10M cable length
• Standard cable characteristic
• Test conditions on request test conditions cable
• 45MM bending radius, fixed cable
• 90MM bending radius, moving cable
• 8.5MM cable diameter
• ± 0.5 mm cable diameter tolerance
• 18 x 0.34 mm² cable structure
• 0.34I2 nominal cross section conductor
• Cut off bluntly wire ends
• IP65 degree of protection
• In assembled state note on degree of protection
• -25GC ambient temperature
• 70GC ambient temperature
• -5GC ambient temperature with moving cable
• 70GC ambient temperature with moving cable
• In accordance with EU RoHS Directive cE mark (see declaration of conformity)
• To UK RoHS instructions cE marking (see declaration of conformity)
• VDMA24364-B2-L lABS (PWIS) conformity
• RoHS-compliant note on materials
• 3 pollution degree
• PVC material cable sheath
• Grey cable sheath colour
• PA material housing
• NBR material seals
• Gold-plated copper alloy material electrical contact
• -25GC to 75GC storage temperature
