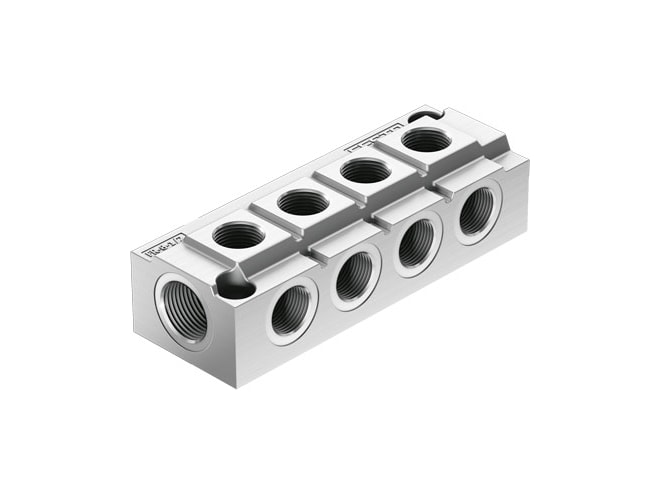

Festo FR-8-1/2 Distributor Block

$193.73
Part Numbers
  • FR-8-1/2
  • 6411
Highlights...

Features

  • 18.6MM nominal size
  • Optional mounting position
  • 0BAR operating pressure complete temperature range
  • 16BAR operating pressure complete temperature range
  • Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
  • Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
  • 0 - No corrosion stress corrosion resistance class cRC
  • VDMA24364-B1/B2-L lABS (PWIS) conformity
  • 35NM nominal torque
  • ± 10% tolerance for nominal tightening torque
  • 1000G product weight
  • 8 number of outputs
  • 1 number of supply lines
  • RoHS-compliant note on materials
  • Die-cast aluminium material housing
  • -10GC ambient temperature to 60GC ambient temperature
  • Pneumatic connection female thread G3/4 , port 1
  • Pneumatic connection female thread G1/2 , port 2
