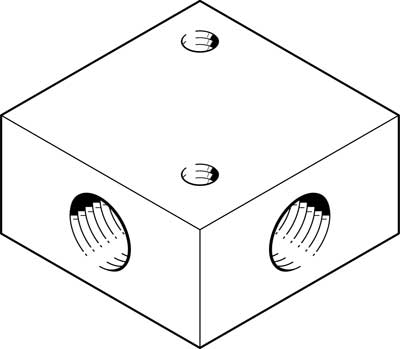

Festo 2960 / FR-4-1/4 Distributor Block

Features

• 11.5MM nominal size
• Optional mounting position
• 0BAR operating pressure complete temperature range
• 16BAR operating pressure complete temperature range
• Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
• Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
• 2 - Moderate corrosion stress corrosion resistance class cRC
• VDMA24364-B1/B2-L lABS (PWIS) conformity
• 68G product weight
• 3 number of outputs
• 1 number of supply lines
• RoHS-compliant note on materials
• Aluminium material housing
• Anodised material housing
• -10GC ambient temperature to 80GC ambient temperature
• Pneumatic connection female thread G1/4 , port 1
• Pneumatic connection female thread G1/4 , port 2
