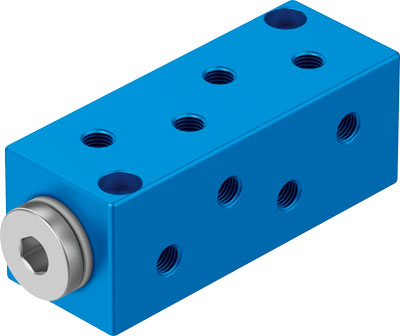

Festo 4525 / FR-12-M5 Distributor Block

$56.84
Part Numbers
  • FR-12-M5
  • 4525
Highlights...

Features

  • 4.1MM nominal size
  • Optional mounting position
  • 0BAR operating pressure complete temperature range
  • 16BAR operating pressure complete temperature range
  • Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
  • Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
  • 2 - Moderate corrosion stress corrosion resistance class cRC
  • VDMA24364-B1/B2-L lABS (PWIS) conformity
  • 3.5NM nominal torque
  • ± 20% tolerance for nominal tightening torque
  • 40G product weight
  • 12 number of outputs
  • 1 number of supply lines
  • RoHS-compliant note on materials
  • Aluminium material housing
  • Anodised material housing
  • -10GC ambient temperature to 60GC ambient temperature
  • Pneumatic connection female thread G1/8 , port 1
  • Pneumatic connection female thread M5 , port 2
