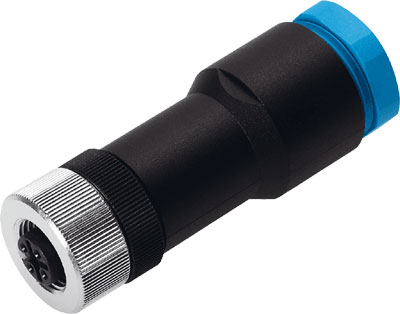

Festo 18496 / FBSD-GD-13,5 Plug Socket

Features

• EN 61076-2-101 based on standard
• EN 61984 based on standard
• Via union nut type of mounting
• Optional mounting position
• 40G product weight
• 4-pin electrical connection
• Straight socket/screw terminal electrical connection
• Type A electrical connection
• M12x1 electrical connection
• 250V operational voltage range dC
• 250V operational voltage range aC
• 4A current rating at 40° c
• 2.5KV immunity to surge
• Pg 13.5 cable fitting
• 0.75I2 connection cross section
• IP67 degree of protection
• To EU Low Voltage Directive cE mark (see declaration of conformity)
• To UK regulations for electrical equipment cE marking (see declaration of conformity)
• VDMA24364-B2-L lABS (PWIS) conformity
• RoHS-compliant note on materials
• 3 pollution degree
• 1 - Low corrosion stress corrosion resistance class cRC
• PA-reinforced material housing
• Black housing colour
• Die-cast zinc material union nut
• Nickel-plated material union nut
• Bronze material electrical contact
• White bronze coated material electrical contact
• -40GC ambient temperature to 85GC ambient temperature
• 10MM to 12MM permissible cable diameter
