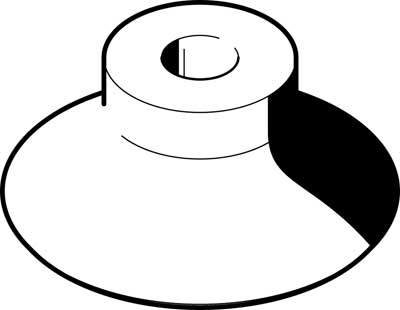

Festo 526001 / ESV-40-GT Suction Cup Without Connector

$28.77
Part Numbers
  • ESV-40-GT
  • 526001
Highlights...

Features

  • 5.5MM height compensator for suction-cup holder
  • 35MM min. workpiece radius
  • 40MM suction cup diameter
  • 5.4CCM suction cup volume
  • Optional mounting position
  • Round, bell-shaped design
  • 991485 symbol
  • Round deep suction cup shape
  • -0.95BAR operating pressure
  • 0BAR operating pressure
  • -0.7BAR nominal operating pressure
  • Atmospheric air based on ISO 8573-1:2010 [7:-:-] operating medium
  • VDMA24364-A1-L lABS (PWIS) conformity
  • 54N breakaway force at 70% vacuum
  • 64N holding force at nominal operating pressure
  • 20N lateral force at nominal operating pressure
  • 5.7G product weight
  • Via vacuum port type of mounting
  • Red-brown colour
  • 72 +/- 5 shore hardness
  • RoHS-compliant note on materials
  • Vulkollan material suction cup
  • -10GC ambient temperature to 80GC ambient temperature
