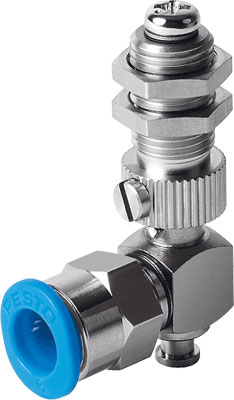

Festo 189233 / ESH-HD-1-QS Suction Cup Complete Holder

$76.90
Part Numbers
  • ESH-HD-1-QS
  • 189233
Highlights...

Features

  • 3MM height compensator for suction-cup holder
  • 0.241CCM volume
  • Vertical mounting position
  • Vacuum port on side design
  • With height compensator design
  • Size 1 correlation to suction-cup holder
  • Atmospheric air based on ISO 8573-1:2010 [7:-:-] operating medium
  • 1 - Low corrosion stress corrosion resistance class cRC
  • VDMA24364-A1-L lABS (PWIS) conformity
  • 13G product weight
  • Via lock nut type of mounting
  • Diameter 3 mm suction cup mounting
  • QS-4 vacuum connection
  • RoHS-compliant note on materials
  • NBR material seals
  • Steel material seals
  • Aluminium material retaining bracket
  • Nickel-plated brass material retaining bracket
  • POM material retaining bracket
  • Tempered steel material retaining bracket
  • High-alloy steel material retaining bracket
  • 0GC ambient temperature to 60GC ambient temperature
