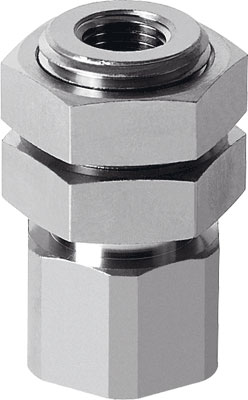

Festo 189202 / ESH-HA-6-G Suction Cup Complete Holder

$89.84
Part Numbers
  • ESH-HA-6-G
  • 189202
Highlights...

Features

  • 7.234CCM volume
  • Vertical mounting position
  • Vacuum port on top design
  • Size 6 correlation to suction-cup holder
  • Atmospheric air based on ISO 8573-1:2010 [7:-:-] operating medium
  • 1 - Low corrosion stress corrosion resistance class cRC
  • VDMA24364-A1-L lABS (PWIS) conformity
  • 200G product weight
  • Via lock nut type of mounting
  • M20x2 suction cup mounting
  • G1/4 vacuum connection
  • RoHS-compliant note on materials
  • Aluminium material retaining bracket
  • Nickel-plated brass material retaining bracket
  • POM material retaining bracket
  • Tempered steel material retaining bracket
  • High-alloy steel material retaining bracket
  • -10GC ambient temperature to 60GC ambient temperature
