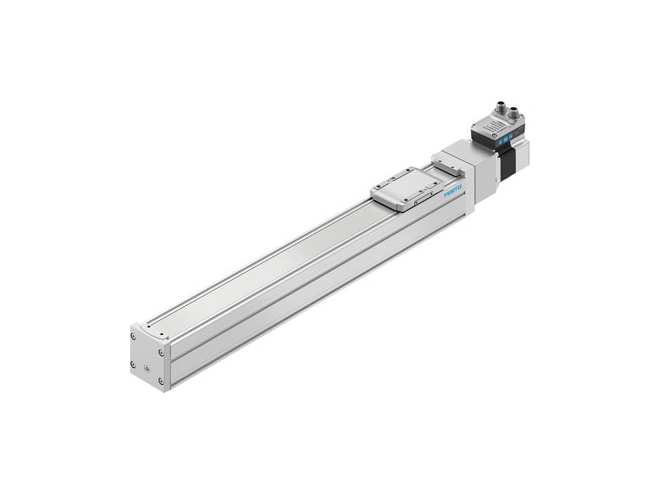

Festo ELGS-BS-KF-60-400-12P-ST-M-H1-PLK-AA Spindle Axis Unit

Name: Festo ELGS-BS-KF-60-400-12P-ST-M-H1-PLK-AA Spindle Axis Unit
Price: 1456.6 USD
Availability: BackOrder

Size 60 spindle axis unit with 400mm stroke, 12mm spindle pitch, ball screw drive, recirculating ball bearing guide, and stepper motor ST. View other configurations.

$1,456.60

Part Numbers

ELGS-BS-KF-60-400-12P-ST-M-H1-PLK-AA
8083386

Highlights...

ELGS-BS-KF-60-400-12P-ST-M-H1-PLK-AA
By Festo
FREE Shipping
Usually ships in 2-3 weeks

Features

400MM working stroke
60 size
0MM stroke reserve
12MM spindle diameter
12Y13 spindle pitch
Optional mounting position
Recirculating ball bearing guide guide
Electromechanical linear axis design
With ball screw design
With integrated drive design
Stepper motor type of motor
Ball screw drive spindle type
997292 symbol
Motor encoder position detection
Via proximity switch position detection
Positive fixed stop block referencing
Negative fixed stop block referencing
Absolute single-turn encoder rotor position sensor
Magnetic rotor position sensor, encoder measuring principle
Switch-off for excessive temperature temperature monitoring
Integrated precise CMOS temperature sensor with analogue output temperature monitoring
User interface additional functions
Integrated end-position sensing additional functions
LED display
LED ready status indication
5MS2 max. acceleration
0.25M/S max. speed
±0.01 mm repetition accuracy
Configurable features of digital logic outputs
Not galvanically isolated features of digital logic outputs
100% duty cycle
B insulation protection class
100MA max. current digital logic outputs
5300A max. current consumption
0.3A max. current consumption, logic
24V nominal voltage dC
5.3A nominal current
IO-Link parameterisation interface
User interface parameterisation interface
16BIT rotor position transducer resolution
+/- 15% permissible voltage fluctuations
Plugs power supply, connection type
M12x1, T-coded according to EN 61076-2-111 power supply, connection system
4 power supply, number of pins/wires
995989 power supply, connection pattern
RCM trademark approval
KC-EMV kC mark
To EU EMC Directive cE mark (see declaration of conformity)
In accordance with EU RoHS Directive cE mark (see declaration of conformity)
To UK instructions for EMC cE marking (see declaration of conformity)
To UK RoHS instructions cE marking (see declaration of conformity)
Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6 vibration resistance
Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27 shock resistance
VDMA24364 zone III lABS (PWIS) conformity
Class 7 according to ISO 14644-1 cleanroom class
0 - 90% relative air humidity
IP40 degree of protection
III protection class
0GC ambient temperature
50GC ambient temperature
Power must be reduced by 2% per K at ambient temperatures above 30°C. note on ambient temperature
441000Y12 2nd moment of area iy
542000Y12 2nd moment of area iz
3641N max. force fy
3641N max. force fz
600N max. force fy total axis
1800N max. force fz total axis
13400N fy at theoretical life value of 100 km (only guide consideration)
13400N fz at theoretical life value of 100 km (only guide consideration)
29.1NM max. moment mx
31.8NM max. moment my
31.8NM max. moment mz
29.1NM max. moment mx total axis
31.8NM max. moment my total axis
31.8NM max. moment mz total axis
107NM mx at theoretical life value of 100 km (only guide consideration)
117NM my at theoretical life value of 100 km (only guide consideration)
117NM mz at theoretical life value of 100 km (only guide consideration)
200N max. feed force fx
20KG reference value effective load, horizontal
13KG reference value effective load, vertical
29800Y12 torsional mass moment of inertia it
12Y13 feed constant
5000KM reference service life
Life-time lubrication maintenance interval
525G moving mass
4902G product weight
0.05% of the axis length, max. 0.5 mm dynamic deflection (moving load)
0.1% of the axis length static deflection (load in standstill)
2 number of digital logic outputs 24 v dC
2 number of digital logic inputs
Based on IEC 61131-2, type 1 specification logic input
24V working range of logic input
Yes iO-Link, sIO-Mode support
Configurable features of logic input
Not galvanically isolated features of logic input
Device V 1.1 iO-Link, protocol version
COM3 (230.4 kBaud) iO-Link, communication mode
A iO-Link, port class
1 iO-Link, number of ports
2 bytes iO-Link, process data length oUT
Move in 1 bit iO-Link, process data content oUT
Move out 1 bit iO-Link, process data content oUT
Quit Error 1 bit iO-Link, process data content oUT
Move intermediate 1 bit iO-Link, process data content oUT
2 bytes iO-Link, process data length iN
State In 1 bit iO-Link, process data content iN
State Out 1 bit iO-Link, process data content iN
State Move 1 bit iO-Link, process data content iN
State Device 1 bit iO-Link, process data content iN
State Intermediate 1 bit iO-Link, process data content iN
32-bit force iO-Link, service data iN
32-bit position iO-Link, service data iN
32-bit speed iO-Link, service data iN
1 ms iO-Link, min. cycle time
500KB iO-Link, data storage required
15 m outputs max. cable length
15 m inputs max. cable length
20 m with IO-Link® operation max. cable length
PNP (positive switching) switching logic for outputs
PNP (positive switching) switching logic for inputs
Plugs iO-Link, connection technology
Plug logic interface, connection type
M12x1, A-coded according to EN 61076-2-101 logic interface, connection technology
8 logic interface, number of pins/wires
992264 logic interface, plug pattern
Via female thread type of mounting
Via centring sleeve and pin type of mounting
With accessories type of mounting
Painted die cast aluminium material end cap
Anodised wrought aluminium alloy material profile
RoHS-compliant note on materials
High-alloy stainless steel material cover tape
Painted die cast aluminium material drive cover
Steel material guide slide
Steel material guide rail
Die-cast aluminium material slide
Steel material spindle nut
Steel material spindle
-20GC to 60GC storage temperature
