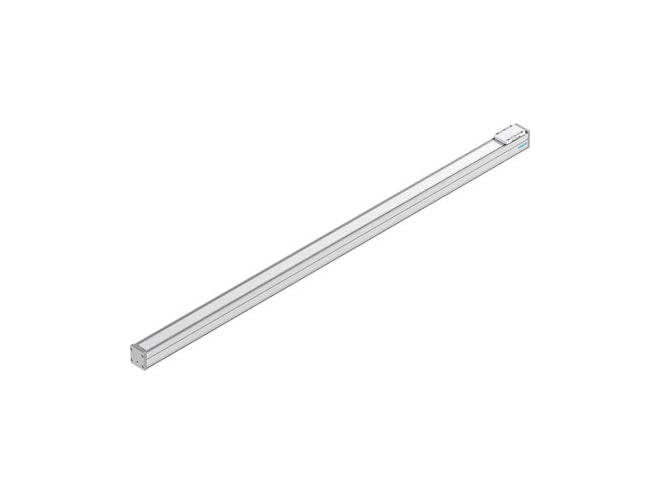

Festo ELFC-KF-60-1500 Guide Axis

Features

• 1500MM working stroke
• 60 size
• 0MM stroke reserve
• Optional mounting position
• Recirculating ball bearing guide guide
• Guidance design
• 992984 symbol
• 500MS2 max. acceleration
• 1.5M/S max. speed
• 100% duty cycle
• 0 - No corrosion stress corrosion resistance class cRC
• VDMA24364 zone III lABS (PWIS) conformity
• Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils suitability for the production of li-ion batteries
• Class 7 according to ISO 14644-1 cleanroom class
• IP40 degree of protection
• 441000Y12 2nd moment of area iy
• 542000Y12 2nd moment of area iz
• 3641N max. force fy
• 3641N max. force fz
• 29.1NM max. moment mx
• 31.8NM max. moment my
• 31.8NM max. moment mz
• 600N max. force fy total axis
• 1800N max. force fz total axis
• 29.1NM max. moment mx total axis
• 31.8NM max. moment my total axis
• 31.8NM max. moment mz total axis
• 29800Y12 torsional mass moment of inertia it
• 6.75N displacement force
• 5000KM reference service life
• 13400N fy at theoretical life value of 100 km (only guide consideration)
• 13400N fz at theoretical life value of 100 km (only guide consideration)
• 107NM mx at theoretical life value of 100 km (only guide consideration)
• 117NM my at theoretical life value of 100 km (only guide consideration)
• 117NM mz at theoretical life value of 100 km (only guide consideration)
• 407G moving mass
• 43G additional weight per 10 mm stroke
• Painted die cast aluminium material end cap
• Anodised wrought aluminium alloy material profile
• RoHS-compliant note on materials
• High-alloy stainless steel material cover tape
• Steel material guide slide
• Steel material guide rail
• Die-cast aluminium material slide
• 0GC ambient temperature to 50GC ambient temperature
