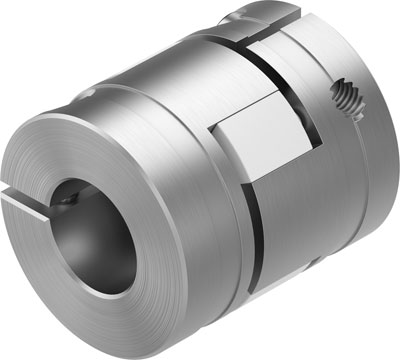

Festo 1453063 / EAMC-30-35-8-14 Coupling

$95.10
Part Numbers
  • EAMC-30-35-8-14
  • 1453063
Highlights...

Features

  • 8MM mounting diameter 1
  • 14MM mounting diameter 2
  • 30 size
  • 35MM nominal length
  • Optional mounting position
  • 8000PMI max. rotational speed
  • VDMA24364-B2-L lABS (PWIS) conformity
  • 0 - 95% relative air humidity
  • 6.1Y20 mass moment of inertia
  • 8.2NM transmittable torque
  • 45G product weight
  • RoHS-compliant note on materials
  • -25GC ambient temperature to 60GC ambient temperature
  • -25GC to 60GC storage temperature
