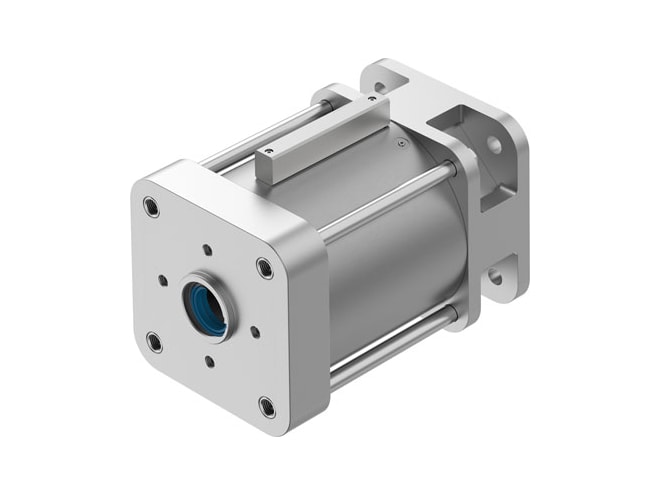

Festo DACS-40-A-R3-S Holding Brake

$10,526.48

Part Numbers

DACS-40-A-R3-S
8072777

Highlights...

DACS-40-A-R3-S
By Festo
FREE Shipping
Usually ships in 3-4 weeks

Features

Optional mounting position
On both sides type of clamping with direction of action
Clamping via spring force, air to release type of clamping with direction of action
992086 symbol
Via proximity switch position detection
Holding and stopping a movement safety function
Stopping, holding, blocking a movement/category 1, Performance Level c performance level (PL)
0.38MPA operating pressure
0.8MPA operating pressure
3.8BAR operating pressure
8BAR operating pressure
55.1PSI operating pressure
116PSI operating pressure
8BAR max. permissible test pressure
3.8BAR min. release pressure
40MM round material to be clamped
German Technical Control Board (TÜV) approval
To EC Machinery Directive cE mark (see declaration of conformity)
To UK regulations for machines cE marking (see declaration of conformity)
German Technical Control Board (TÜV) CA 697 certificate issuing authority
Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
3 - high corrosion stress corrosion resistance class cRC
VDMA24364-B2-L lABS (PWIS) conformity
17000N static holding force
34500G product weight
Via female thread type of mounting
With accessories type of mounting
G3/8 release connection, clamping unit
RoHS-compliant note on materials
NBR material seals
TPE-U(PU) material seals
High-alloy steel material spring
Steel material housing
Tool steel material clamp jaws
Steel material piston
-20GC ambient temperature to 80GC ambient temperature

Spec Sheets

Festo DACS-40-A-R3-S Holding Brake Datasheet (91 KB)

Other

Festo DACS-40-A-R3-S Holding Brake CAD Diagram (479 KB)
