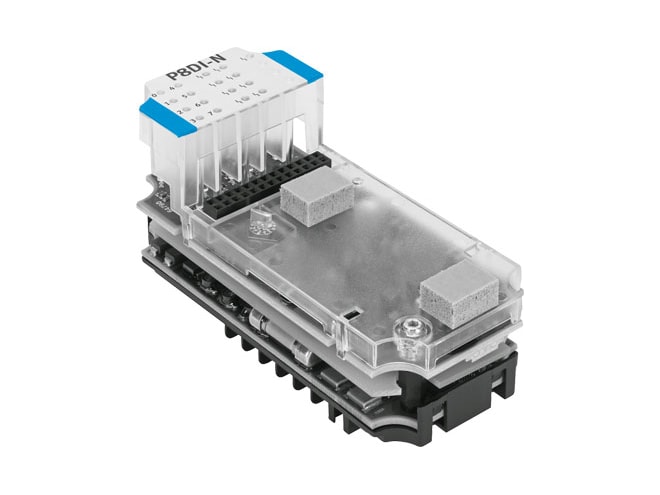

Festo CPX-P-8DE-N-IS Input Module

Digital module: NAMUR input module with 8 digital inputs. View other configurations.

$659.13
Part Numbers
  • CPX-P-8DE-N-IS
  • 565934
Highlights...

Features

  • (incl. interlinking block and connection technology) dimensions (W x l x h)
  • 50 x 107 x 70 mm dimensions (W x l x h)
  • 50MM grid dimension
  • On interlinking block CPX-M-GE.. type of mounting
  • 100G product weight
  • -5GC ambient temperature
  • 50GC ambient temperature
  • 95 % relative air humidity
  • Non-condensing relative air humidity
  • Dependent on the manifold block degree of protection
  • SG1 on H-rail note on vibration resistance
  • SG2 on direct mounting note on vibration resistance
  • SG1 on H-rail note on shock resistance
  • SG2 on direct mounting note on shock resistance
  • 200 m max. cable length
  • VDMA24364 zone III lABS (PWIS) conformity
  • To EU Explosion Protection Directive (ATEX) cE mark (see declaration of conformity)
  • To UK EX instructions cE marking (see declaration of conformity)
  • II (1) G aTEX category gas
  • II (1) D aTEX category dust
  • EPL Da (BR) explosion protection certification outside the eU
  • EPL Da (IECEx) explosion protection certification outside the eU
  • EPL Dc[Da] (GB) explosion protection certification outside the eU
  • EPL Ga (BR) explosion protection certification outside the eU
  • EPL Ga (IEC-EX) explosion protection certification outside the eU
  • EPL Gc[Ga] (GB) explosion protection certification outside the eU
  • [Ex ia Ga] IIC explosion ignition protection type for gas
  • [Ex ia Da] IIIC explosion ignition protection type for dust
  • -5°C <= Ta <= +70°C explosion ambient temperature
  • DNV 15.0192 X certificate issuing authority
  • IECEx ZLM 12.0007 X certificate issuing authority
  • ZELM 12 ATEX 0500 X certificate issuing authority
  • RoHS-compliant note on materials
  • PA-reinforced material housing
  • PC material housing
  • 1 Group diagnostics lED display
  • 8 channel diagnostics lED display
  • 8 Channel status lED display
  • Wire break per channel diagnosis
  • Limit value violation per channel diagnosis
  • Short circuit per channel diagnosis
  • Parameterisation error diagnosis
  • DIL switch operator controls
  • Data format parameterisation
  • Input debounce time per channel parameterisation
  • Input function per channel parameterisation
  • Replacement value in diagnostic case per channel parameterisation
  • Signal extension time per channel parameterisation
  • Gate time per channel parameterisation
  • Monitoring limit values per channel parameterisation
  • Monitoring of short circuit per channel parameterisation
  • Parameter monitoring parameterisation
  • Counter configuration per channel parameterisation
  • Upper limit per channel parameterisation
  • Lower limit value per channel parameterisation
  • Wire break monitoring per channel parameterisation
  • Frequency measurement additional functions
  • Counter function additional functions
  • 24V nominal operating voltage dC
  • +/- 25% permissible voltage fluctuations
  • 0.4 Vpp residual ripple
  • Typ. 75 mA intern power consumption nominal operating voltage
  • 20MS power failure bridging
  • For operating voltage reverse polarity protection
  • 8 number of inputs
  • To EN 60947-5-6 characteristic for inputs
  • To EN 60947-5-6 switching level
  • 3 ms (0 ms, 10 ms, 20 ms, parameterisable) input debounce time
  • 0.042MW max. output power po
  • 10V max. output voltage uo
  • 0.017MA max. output current io
  • 125C14 max. external inductance lo
  • 30004O max. external capacitance co
  • No isolation channel - channel
  • Yes isolation channel - internal bus
  • Per channel fuse protection (short circuit)
  • -20GC to 70GC storage temperature
